C-PILLAR TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable if removing the trunk side trim (LH).

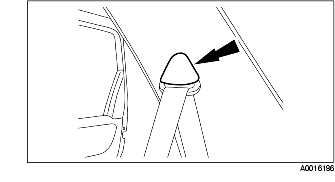

2. Remove the seat belt guide cover.

3. Remove the seat belt guide bolt.

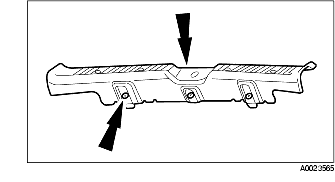

4. Remove the pins and the trunk end trim.

5. Position the liftgate weatherstrip out of the way.

6. Remove the cargo net hold-down. (if equipped)

7. Remove the trunk side trim.

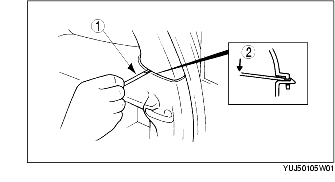

(1) Insert a tape-wrapped screwdriver between the D-pillar trim and the trunk side trim.

(2) Push the screwdriver in the direction of the arrow and remove the trunk side trim.

(3) Disconnect the rear accessory socket connector when remove the trunk side trim (LH).

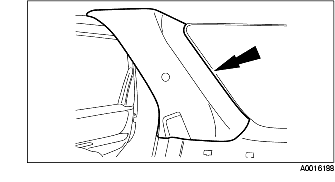

8. Remove the C-pillar trim.

9. Install in the reverse order of removal.
