FRONT DOOR TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (Vehicles with power windows)

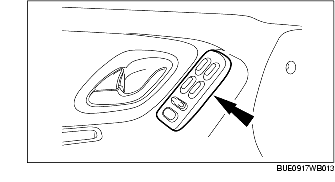

2. Remove the power window main switch.

(1) Disconnect the connector.

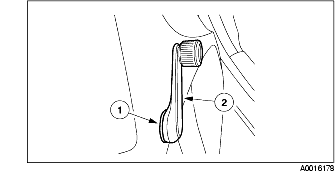

3. Remove the front door manual window regulator handle. (Vehicles with manual windows)

(1) Release the clip.

(2) Remove the front door manual window regulator handle.

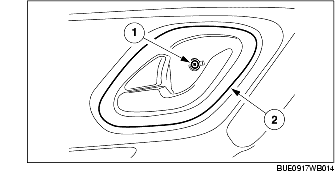

4. Remove the front inner handle cover.

(1) Remove the screw.

(2) Remove the front inner handle cover.

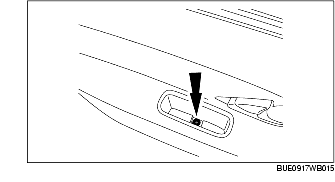

5. Remove the door handle cup screw.

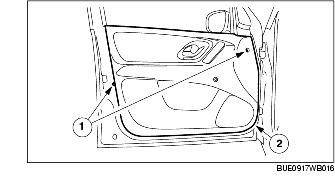

6. Remove the front door trim.

(1) Remove the screws.

(2) Remove the front door trim.

7. Install in the reverse order of removal.
