REAR DOOR TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (Vehicles with power windows)

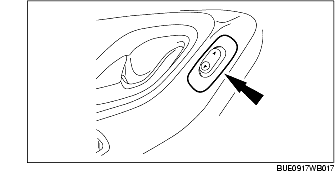

2. Remove the power window subswitch.

(1) Disconnect the connector.

3. Remove the rear door manual window regulator handle. (Vehicles with manual windows)

(1) Release the clip.

(2) Remove the rear door manual window regulator handle.

4. Remove the rear inner handle cover.

(1) Remove the screw.

(2) Remove the rear inner handle cover.

5. Remove the door handle cup screw.

6. Remove the rear door inner garnish.

7. Remove the rear door trim.

8. Install in the reverse order of removal.
