FLOOR CONSOLE REMOVAL/INSTALLATION
id091700804800
High Series
1. Remove the floor console.
-
(1) Apply the parking brake.
-
(2) Remove the floor console.
2. Remove the floor console front bolts.
3. Remove the floor console.
-
(1) Remove the two rear bolts.
-
(2) Remove the floor console.
4. Install in the reverse order of removal.
Low Series

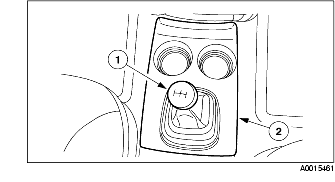

1. Remove the floor console front panel.
-
(1) Remove the manual transmission shift knob.(If equipped)
-
(2) Remove the floor console finish panel.
2. Remove the floor console rear panel.
-
(1) Apply the parking brake.
-
(2) Remove the floor console rear panel.

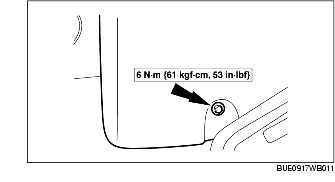

3. Remove the floor console front bolts.
4. Remove the floor console.
-
(1) Remove the two rear bolts.
-
(2) Remove the floor console.
5. Install in the reverse order of removal.
