HEADLIGHT LEVELING SWITCH INSPECTION
id091800464300
1. Verify that the continuity between the headlight leveling switch terminals is as indicated in the table.
• If the resistance and continuity are not as indicated in the table, replace the headlight leveling switch.
|

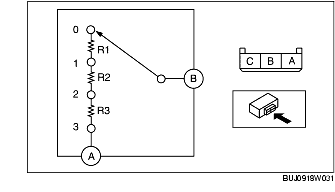

Testing circuit
|
Tester connecting terminal
|
Switch position
|
Normal condition
|
|
Headlight leveling switch
|
Terminal A to terminal B
|
0
|
Resistance approx.1682 ohms
|
|
1
|
Resistance approx. 729 ohms
|
|
2
|
Resistance approx. 287 ohms
|
|
3
|
No resistance (continuity detected)
|
