1. Disconnect the negative battery cable.

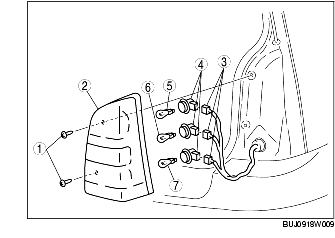

2. Remove in the order indicated in the table.
|
1
|
Screw
|
|
2
|
Rear combination light
|
|
3
|
Connector
|
|
4
|
Socket
|
|
5
|
Brake/tail light bulb
|
|
6
|
Rear turn light bulb
|
|
7
|
Rear fog light bulb (driver's side)
Back-up light bulb (passenger's side)
|
3. Install in the reverse order of removal.
