CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

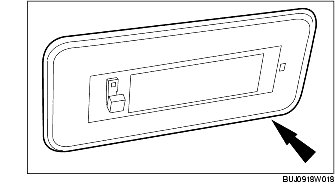

2. Remove the cargo compartment light as a single unit from the headliner.

3. Remove the cargo compartment light as a single unit.

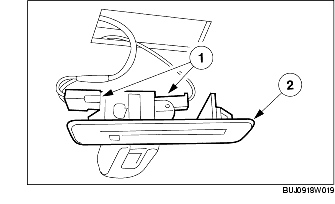

(1) Disconnect the cargo compartment light connector.

(2) Remove the cargo compartment light as a single unit.

4. Install in the reverse order of removal.
