FRONT FOG LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the tire and wheel.

3. Position the mudguard out of the way.

(1) Remove the bolt.

(2) Remove the pin type retainer.

(3) Remove the screw.

(4) Position the mudguard out of the way.

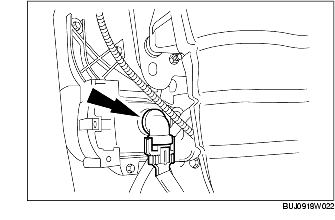

4. Disconnect the bulb as a single unit and set it out of the way.

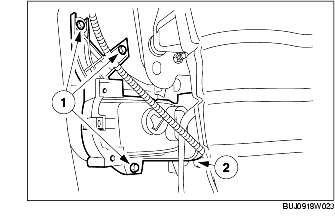

5. Remove the front fog light as a single unit.

(1) Remove the bolt.

(2) Remove the front fog light as a single unit.

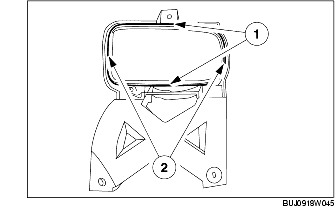

6. Remove the front fog light from the front fog light bracket.

(1) Press the upper and bottom surface of the front fog light bracket.

(2) Remove the front fog light from the front fog light bracket.

Note

• This procedure is not needed if the front fog light is installed properly in the bracket.

7. Install in the reverse order of removal.
