FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

Warning

• The halogen fog light bulb has high pressure gas. f the glass surface is damaged or the bulb is dropped, it could break into pieces. Be very careful when servicing the bulb. Always hold the base part and avoid touching the glass. Failure to follow this procedure could result in injury.

Caution

• Do not remove fog light bulb from the fog light until you install a new fog light. Fog light function may be negatively affected if the bulb is removed for a long period. Foreign materials will enter the fog light and could adhere to the lens or reflector. Do not turn the fog light on with the bulb removed.

1. Remove the wheel and tire.

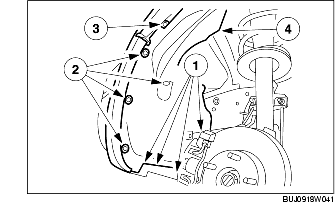

2. Position the mudguard out of the way.

(1) Remove the bolt.

(2) Remove the pin type retainer.

(3) Remove the screw.

(4) Position the mudguard out of the way.

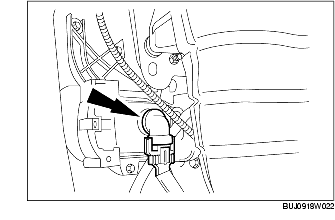

3. Remove the socket from the front combination light.

(1) Disconnect the connector.

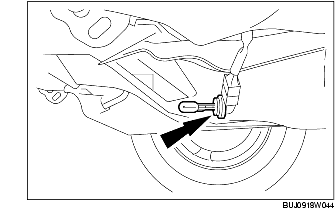

4. Remove the bulb from the connector.

5. Install in the reverse order or removal.
