LIGHT SWITCH INSPECTION
id091800469800

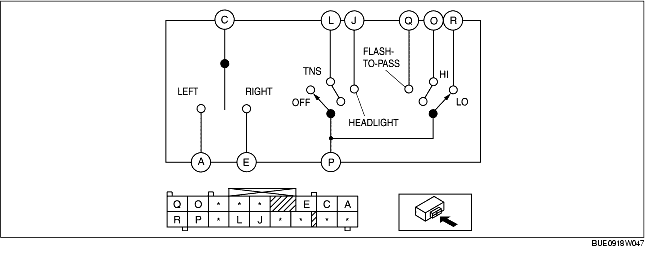

L.H.D.
1. Verify the continuity between the light switch terminals is as indicated in the table.
• If not as indicated in the table. replace the light switch.
|
Testing circuit
|
Tester connecting terminal
|
Switch operation
|
Normal condition
|
|
Headlight
|
Terminal J to terminal P
|
OFF
|
No continuity
|
|
Headlight
|
Continuity detected
|
|
TNS
|
No continuity
|
|
TNS
|
Terminal L to terminal P
|
OFF
|
No continuity
|
|
Headlight
|
Continuity detected
|
|
TNS
|
Continuity detected
|
|
Turn light
|
Terminal C to terminal A
|
Turn (LH)
|
Continuity detected
|
|
Terminal C to terminal E
|
Turn (LH)
|
No continuity
|
|
Terminal C to terminal E
|
Turn (RH)
|
Continuity detected
|
|
Terminal C to terminal A
|
Turn (RH)
|
No continuity
|
|
High beam
|
Terminal O to terminal P
|
High beam
|
Continuity detected
|
|
Passing
|
Continuity detected
|
|
Low beam
|
No continuity
|
|
Low beam
|
Terminal R to terminal P
|
High beam
|
No continuity
|
|
Passing
|
No continuity
|
|
Low beam
|
Continuity detected
|
|
Passing
|
Terminal Q to terminal P
|
High beam
|
Continuity detected
|
|
Passing
|
No continuity
|
|
Low beam
|
No continuity
|

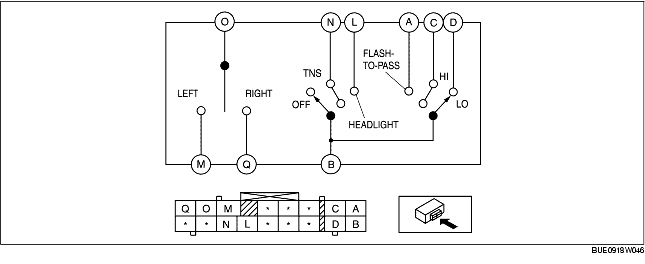

R.H.D.
1. Verify the continuity between the light switch terminals is as indicated in the table.
• If not as indicated in the table. replace the light switch.
|
Testing circuit
|
Tester connecting terminal
|
Switch operation
|
Normal condition
|
|
Headlight
|
Terminal L to terminal B
|
OFF
|
No continuity
|
|
Headlight
|
Continuity detected
|
|
TNS
|
No continuity
|
|
TNS
|
Terminal N to terminal B
|
OFF
|
No continuity
|
|
Headlight
|
Continuity detected
|
|
TNS
|
Continuity detected
|
|
Turn light
|
Terminal O to terminal M
|
Turn (LH)
|
Continuity detected
|
|
Terminal O to terminal Q
|
Turn (LH)
|
No continuity
|
|
Terminal O to terminal Q
|
Turn (RH)
|
Continuity detected
|
|
Terminal O to terminal M
|
Turn (RH)
|
No continuity
|
|
High beam
|
Terminal B to terminal C
|
High beam
|
Continuity detected
|
|
Passing
|
No continuity
|
|
Low beam
|
No continuity
|
|
Low beam
|
Terminal B to terminal D
|
High beam
|
No continuity
|
|
Passing
|
No continuity
|
|
Low beam
|
Continuity detected
|
|
Passing
|
Terminal A to terminal B
|
High beam
|
No continuity
|
|
Passing
|
Continuity detected
|
|
Low beam
|
No continuity
|
