HAZARD WARNING SWITCH REMOVAL/INSTALLATION

id091800470100

1. Disconnect the negative battery cable.

2. Remove the meter hood.

(1) Remove the screws.

(2) Remove the meter hood.

Note

• Apply the parking prake and shift to first range.

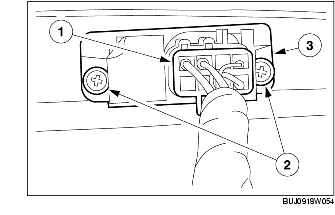

3. Remove the hazard warning switch.

(1) Disconnect the connector.

(2) Remove the screws.

(3) Remove the hazard warning switch.

4. Install in the reverse order of removal.
