MAP/INTERIOR LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

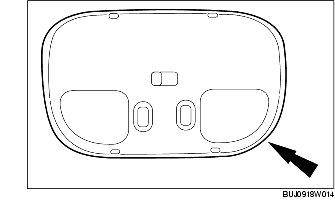

2. Remove the lens.

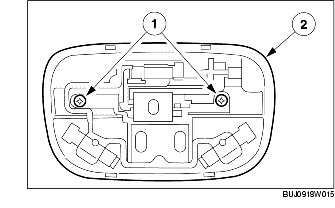

3. Remove the map/interior light as a single unit.

(1) Remove the screws.

(2) Remove the map light.

• Disconnect the connector.

4. Install in the reverse order of removal.
