REAR FOG LIGHT SWITCH INSPECTION
id091800804700
1. Verify that the continuity between the rear fog light switch terminals is as indicated in the table.
• If you could not verify the continuity as indicated in the table, replace the rear fog light switch.
|

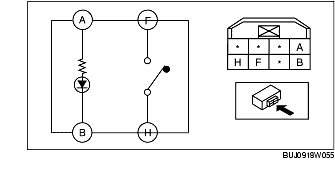

Testing circuit
|
Tester connecting terminal
|
Switch operation
|
Normal condition
|
|
Rear fog light switch
|
Terminal H to terminal F
|
Push
|
Continuity detected
|
|
Release
|
No continuity
|
|
Terminal A to terminal B
|
-
|
Resistance (bulb)
|
