REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900475500

1. Disconnect the negative battery cable.

2. Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

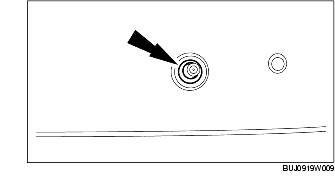

3. Remove the the rear wiper motor nut cover.

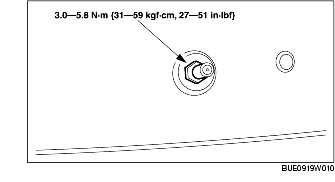

4. Remove the rear wiper motor nut.

5. Open the liftgate.

6. Remove the rear wiper motor cover.

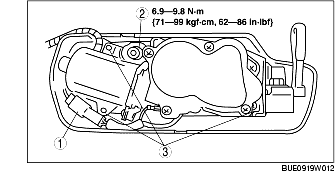

7. Remove the rear wiper motor.

(1) Disconnect the connector.

(2) Remove the nut.

(3) Remove the screws.

(4) Remove the rear wiper motor.

8. Install in the reverse order of the removal.
