WASHER TANK REMOVAL/INSTALLATION

1. Remove the front wheel and tire (RH).

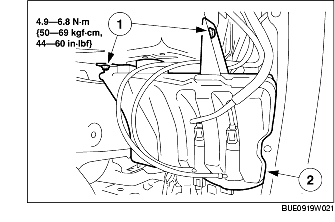

2. Remove the mudguard (RH).

3. Set the washer tank out of the way.

(1) Remove the bolt.

(2) Set the washer tank out of the way.

Note

• To prevent spilling windshield washer fluid, drain the windshield washer reservoir before washer tank removal.

4. Remove the washer tank.

(1) Disconnect the connector.

(2) Disconnect the hose.

(3) Remove the washer tank.

5. Install in the reverse order of removal.

Caution

• Do not operate the washer motor prior to filling the windshield washer reservoir to prevent component damage.
