REAR WIPER ARM AND BLADE ADJUSTMENT


id091900801300

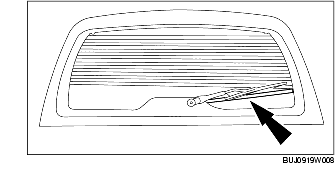

1. Operate the rear wiper, and turn off the wiper motor to set the rear wiper in the park position.

2. If the rear wiper is not in the specified park position, adjust the rear wiper arm and blade to the correct position. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
