WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

1. Remove the front wheel and tire (RH).

2. Remove the mudguard (RH).

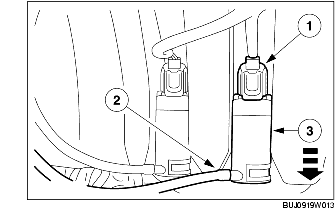

3. Remove the windshield washer motor.

(1) Disconnect the connector.

(2) Disconnect the hose.

(3) Remove the windshield washer motor.

Note

• To prevent spilling windshield washer fluid, drain the windshield washer reservoir before washer motor removal.

4. Install in the reverse order of removal.

Caution

• Do not operate the washer motor prior to filling the windshield washer reservoir to prevent component damage.
