WIPER AND WASHER SWITCH INSPECTION
id091900802800

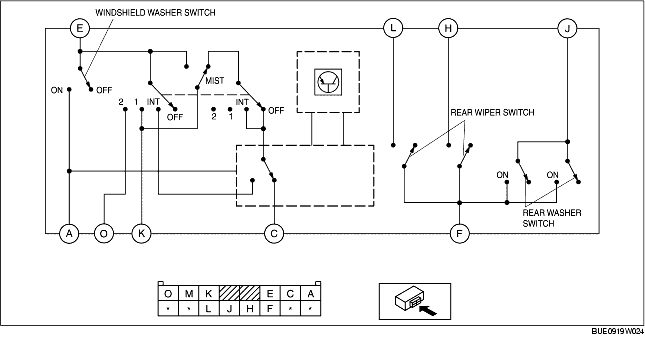

L.H.D.
1. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
• If not as indicated in the table, replace the wiper and washer switch.
|
Circuit tested
|
Terminals connected with tester
|
Switch position
|
Normal status
|
|
Windshield washer switch
|
Terminals E-A
|
ON (Pull back)
|
Continuity detected
|
|
OFF (Original position)
|
No continuity
|
|
Windshield wiper switch
|
Terminals E-K
|
OFF
|
No continuity
|
|
Terminals C-K
|
INT
|
Continuity detected
|
|
Terminals E-K
|
LOW
|
Continuity detected
|
|
Terminals E-O
|
HIGH
|
Continuity detected
|
|
Rear washer switch
|
Terminals J-F
|
ON (Pull back)
|
Continuity detected
|
|
OFF (Original position)
|
No continuity
|
|
Rear wiper switch
|
Terminals F-L
|
OFF
|
No continuity
|
|
ON
|
Continuity detected
|
|
Terminals H-F
|
INT
|
Continuity detected
|

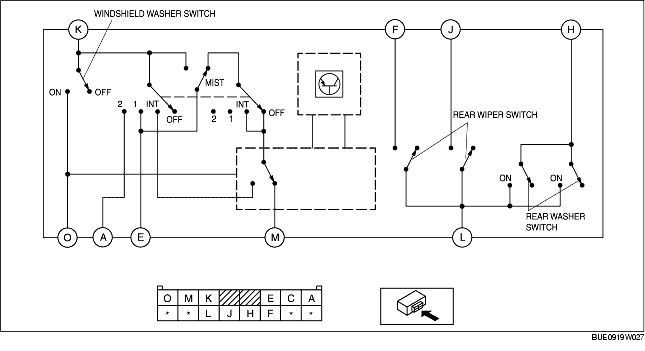

R.H.D.
1. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
• If not as indicated in the table, replace the wiper and washer switch.
|
Circuit tested
|
Terminals connected with tester
|
Switch position
|
Normal status
|
|
Windshield washer switch
|
Terminals K-O
|
ON (Pull back)
|
Continuity detected
|
|
OFF (Original position)
|
No continuity
|
|
Windshield wiper switch
|
Terminals K-E
|
OFF
|
No continuity
|
|
Terminals E-M
|
INT
|
Continuity detected
|
|
Terminals K-E
|
LOW
|
Continuity detected
|
|
Terminals K-A
|
HIGH
|
Continuity detected
|
|
Rear washer switch
|
Terminals H-L
|
ON (Pull back)
|
Continuity detected
|
|
OFF (Original position)
|
No continuity
|
|
Rear wiper switch
|
Terminals F-L
|
OFF
|
No continuity
|
|
ON
|
Continuity detected
|
|
Terminals J-L
|
INT
|
Continuity detected
|
