WASHER HOSE REPAIR


id091900802900

1. Verify and locate the washer hose leak.

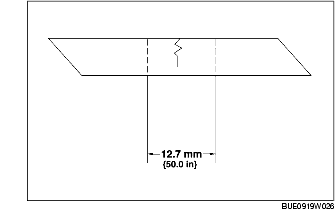

2. Cut the hose cleanly and remove the damaged portion of the washer hose.

3. Install a windshield washer hose adapter between the cut ends of the hose.

4. Install a segment of 6.4 mm {0.25 in} i.d. (internal diameter) black rubber hose over the ends of the washer hose, and clamp both ends of the rubber hose using spring clamps.

Note
• Use clamps if difficult to install.
