AUDIO UNIT REMOVAL


id092000803500

1. Disconnect the negative battery cable.

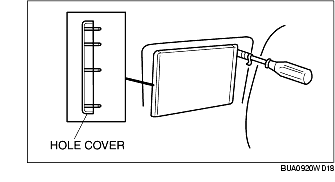

2. Remove the hole covers by inserting a small tape-wrapped screwdriver into the slot and carefully pry them off without scratching the center panel. Pry up and pull off the hole covers carefully to prevent the posts from breaking off.

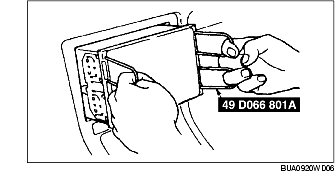

3. With the beveled parts of the SST facing inward, insert them into the unit.

Note
• A pair of the SSTs is necessary to remove the audio unit.

4. Pull the SST outward and forward to slide out the unit.

5. Disconnect the connectors and antenna jack.
