POWER ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the fender splash shield.

3. Remove right lower A-pillar trim.

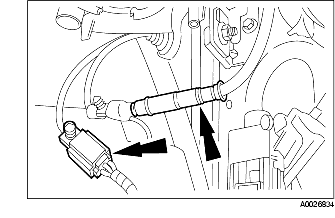

4. Disconnect the power antenna electrical connector and the antenna cable connectors.

(1) Release the pin-type retainers from the body.

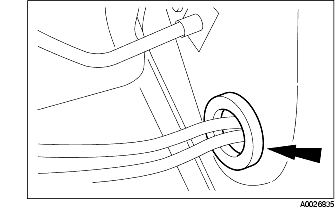

5. Push the rubber grommet and cables into the fender well.

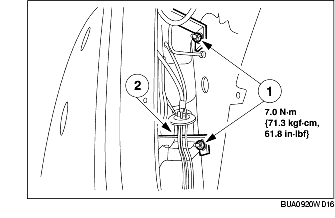

6. Remove the power antenna.

(1) Remove the two nuts.

(2) Position the power antenna and bracket out of the fender well.

7. Install in the reverse order of removal.
