RELAY INSPECTION

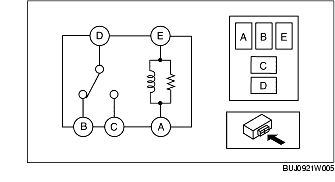

Mini ISO Relay

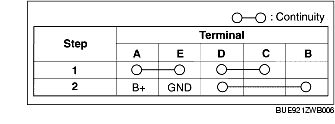

1. Verify the continuity between the relay terminals.

• If not as indicated in the table, replace the relay.

Micro ISO Relay

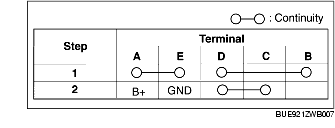

1. Verify the continuity between the relay terminals.

• If not as indicated in the table, replace the relay.
