WARNING INDICATOR BULB REMOVAL/INSTALLATION


id092200800800

1. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

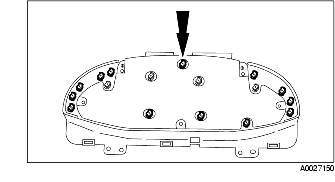

2. Remove the desired bulb by turning a quarter turn counterclockwise and lifting straight up.

3. Install in the reverse order of removal.
