Home >> Oldsmobile >> 1991 >> Custom Cruiser RWD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> With Electronic Air Conditioning >> Part 2 of 2

Part 2 of 2

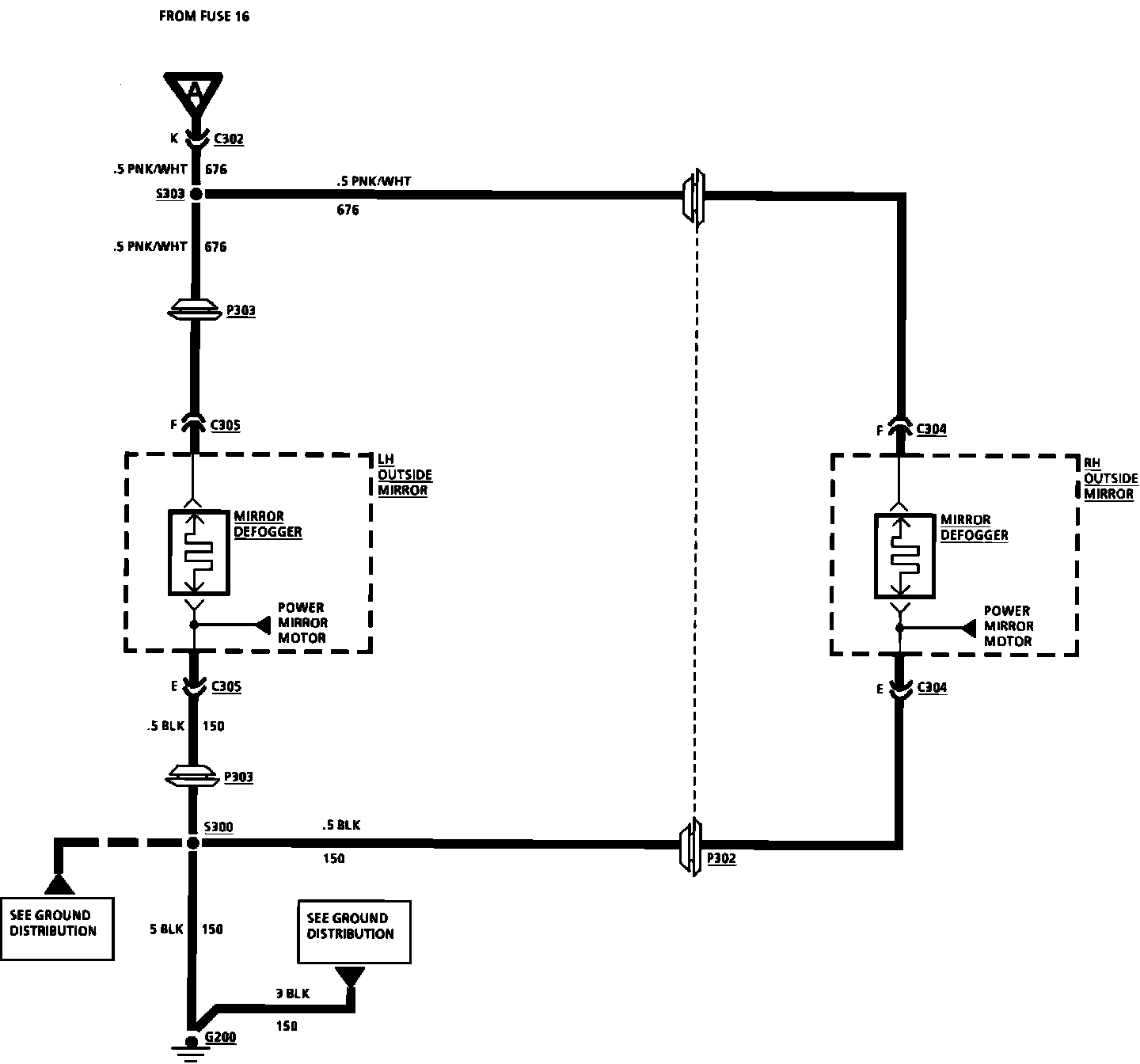

Heated Mirrors & Rear Window Defogger:
