Sliding Door Lock Motor Control
Sliding Door Lock Motor Control

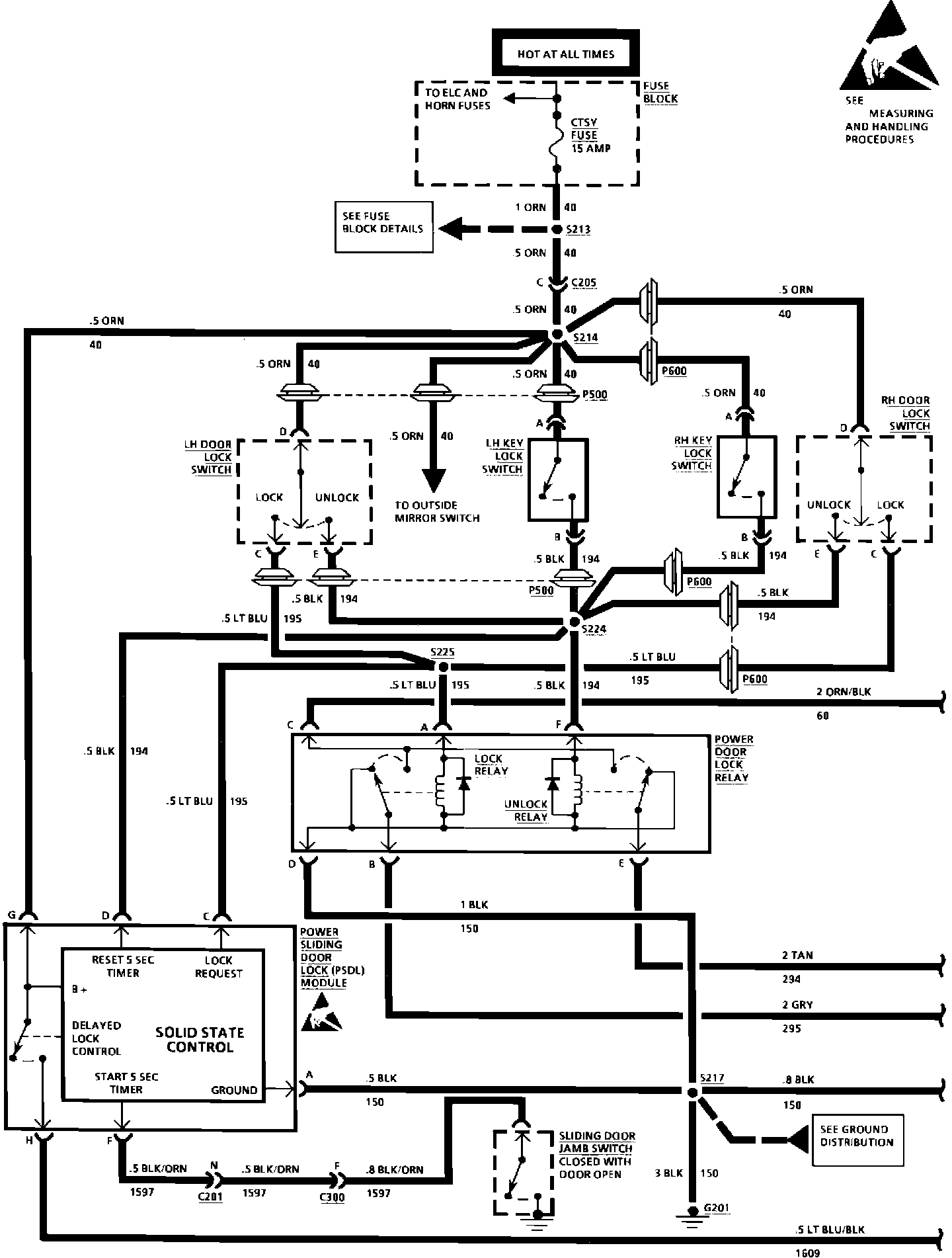

Power Door Locks (Sliding Door Lock Motor Control):
Power Door Locks (Sliding Door Lock Motor Control):
