519219 Removing and installing Cover For Front Underbody


WM 519219 Removing and installing cover for front underbody

- Preliminary work

- Removing cover for front underbody

- Installing cover for front underbody

- Subsequent work

Technical values





Preliminary work

Raise the vehicle.

Removing cover for front underbody

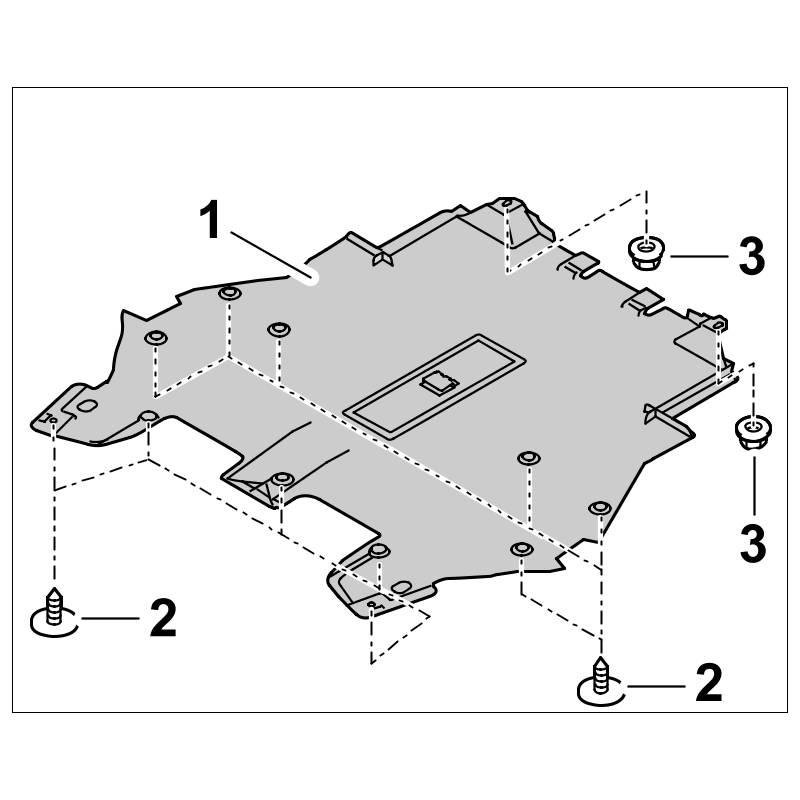

Overview, cover for front underbody

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2- and fastening nuts -3-.





Removing cover

2. Pull cover for front underbody -1- out of the overlap.

Installing cover for front underbody

Installing cover for front underbody

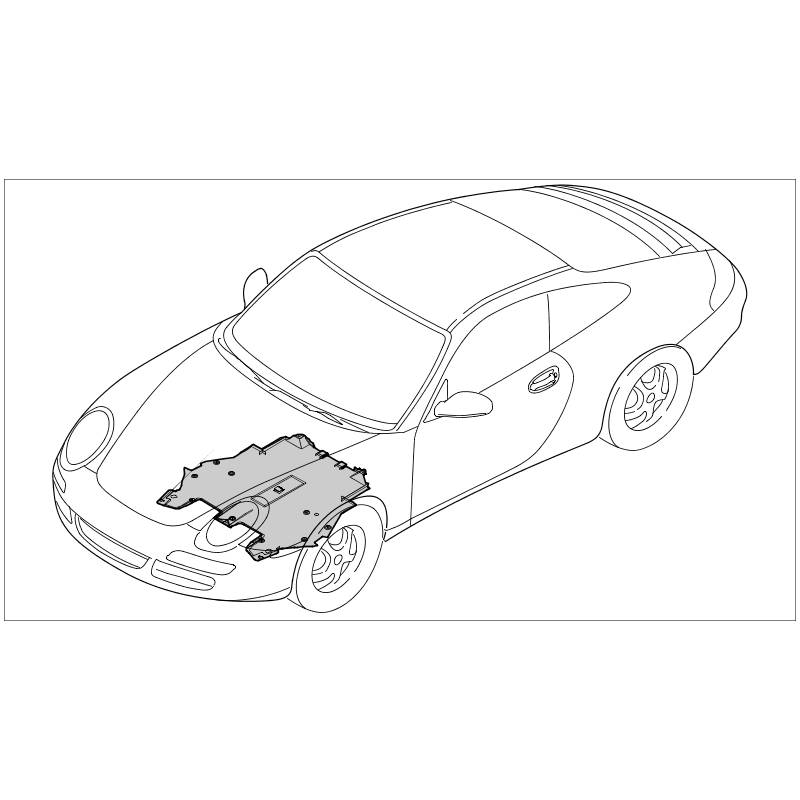

Overview, cover for front underbody

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for front underbody -1-.





Install cover

2. Tighten fastening screws -2-. Tightening torque -> : 1.5 ftlb.
3. Tighten fastening nuts -3-. Tightening torque -> : 0.5 ftlb.

Subsequent work

Subsequent work

Lower the vehicle.
