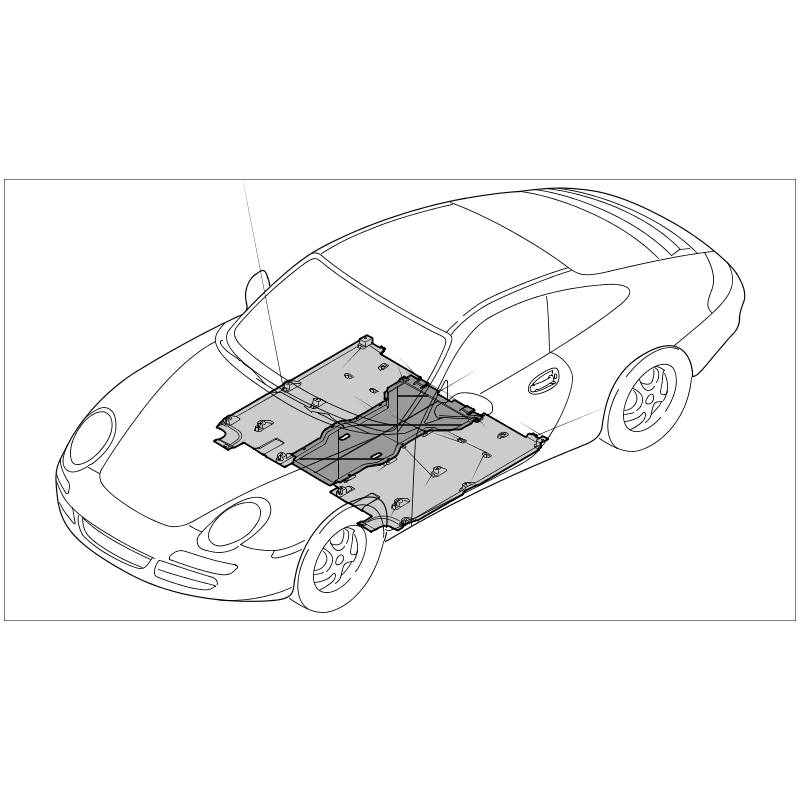

519319 Removing and installing Cover For Centre Underbody

WM 519319 Removing and installing cover for centre underbody

- Preliminary work

- Removing cover for centre underbody

- Installing cover for centre underbody

- Subsequent work

Technical values





Preliminary work

Preliminary work

Lift the vehicle. -> Lifting the vehicle

Removing cover for centre underbody

Removing cover for side underbody

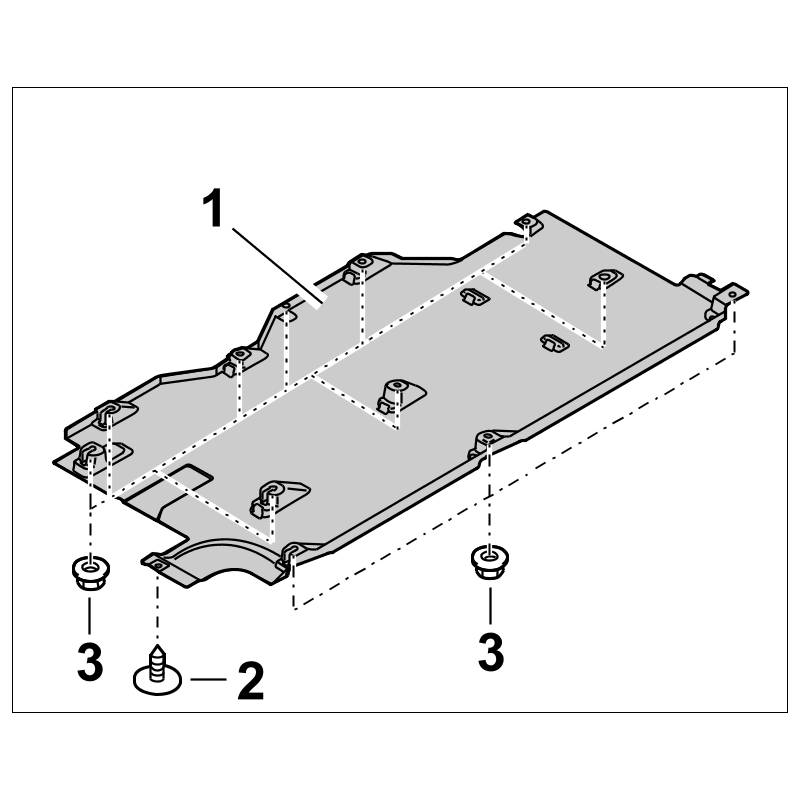

Overview, cover for side underbody

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2- and fastening nuts -3-.





Removing side cover

2. Pull cover for side underbody -1- out of the overlaps.

Removing cover for centre underbody

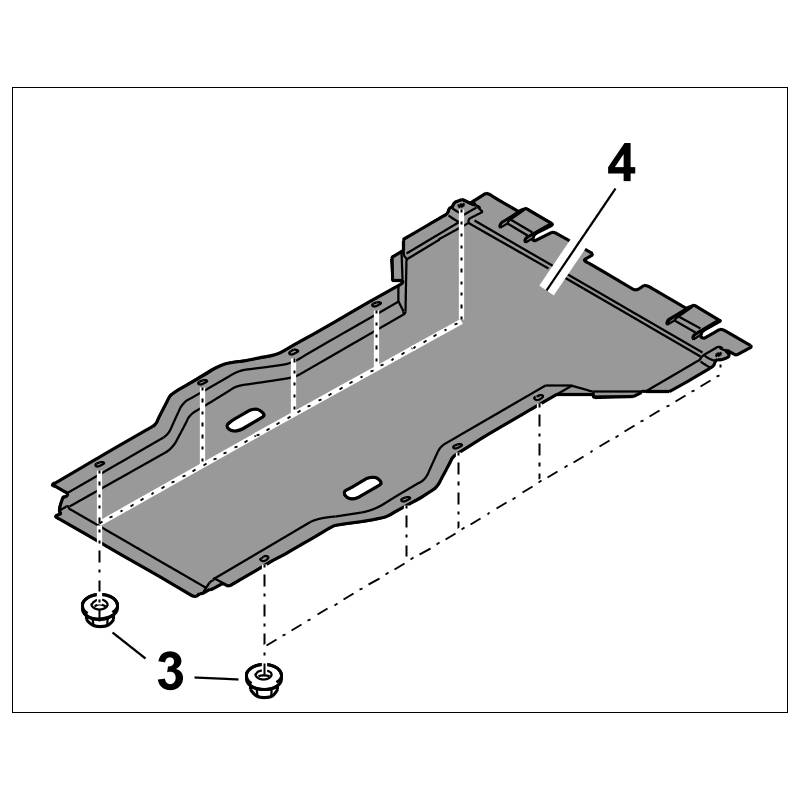

Overview, cover for centre underbody

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening nuts -3-.





Removing middle cover

2. Press covers for side underbody -1- downward slightly and remove cover for centre underbody -4- from the overlaps.

Installing cover for centre underbody

Installing cover for centre underbody





Overview, cover for centre underbody

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for centre underbody -4- , while doing this, press cover for side underbody -1- slightly downward.





Install middle cover

2. Tightening fastening nuts -3-. Tightening torque -> : 1.5 ftlb.

Installing cover for side underbody





Overview, cover for centre underbody

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for side underbody -1-.





Installing side cover

2. Tightening fastening screw -2-. Tightening torque -> : 1.5 ftlb.
3. Tightening fastening nuts -3-. Tightening torque -> : 1.5 ftlb.

Subsequent work

Reworking

Lower the vehicle. -> Lifting the vehicle
