Removing and Installing Cover For Centre Underbody

Removing And Installing Cover For Centre Underbody

Technical values







Preliminary work

Lift the vehicle.

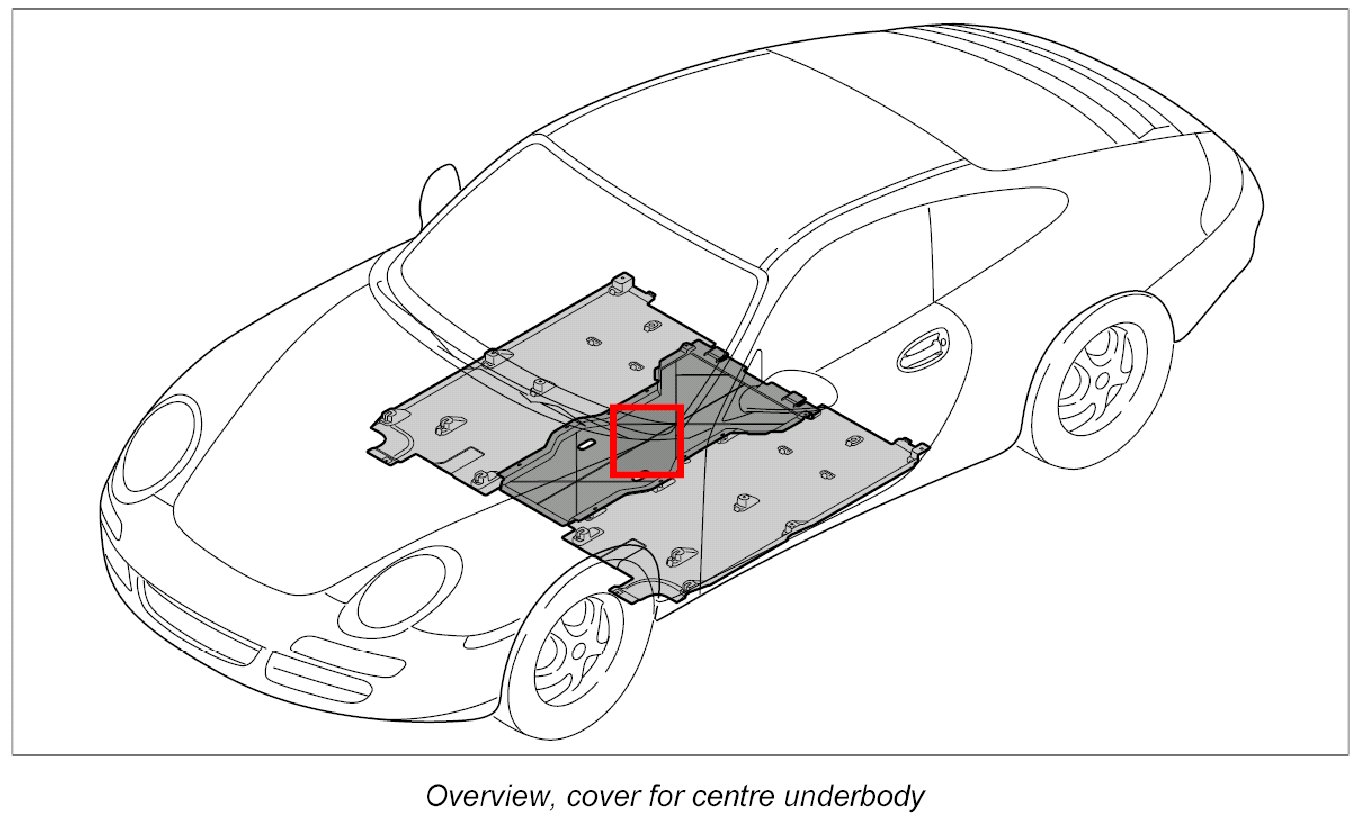

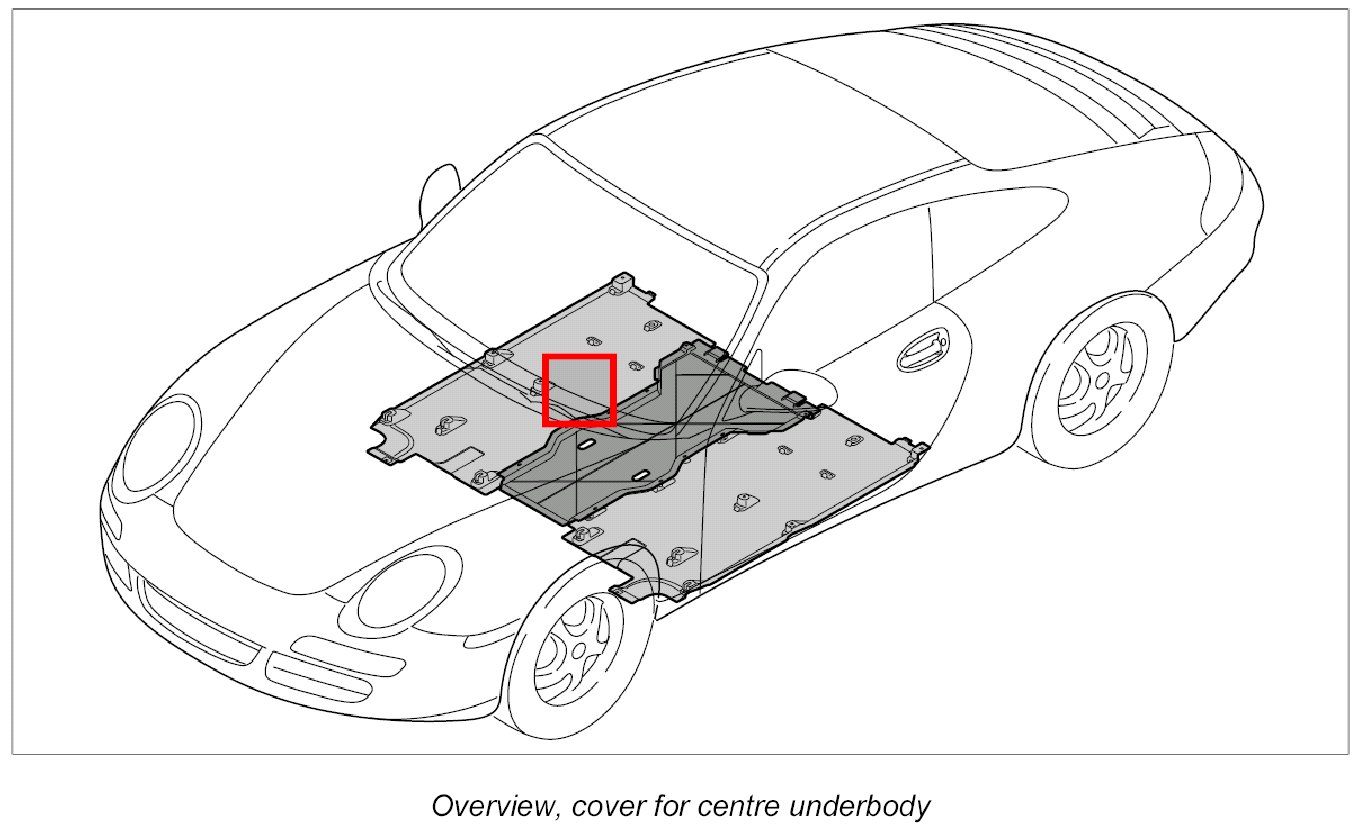

Removing cover for centre underbody

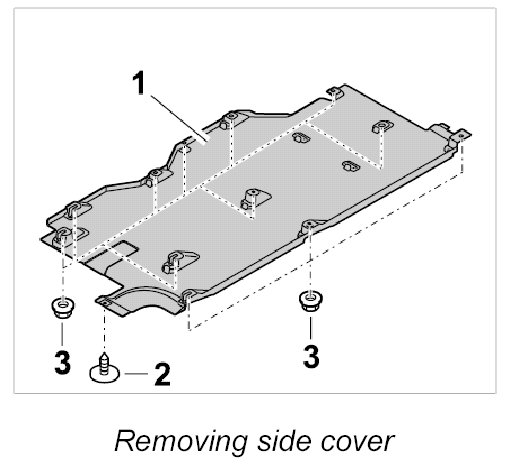

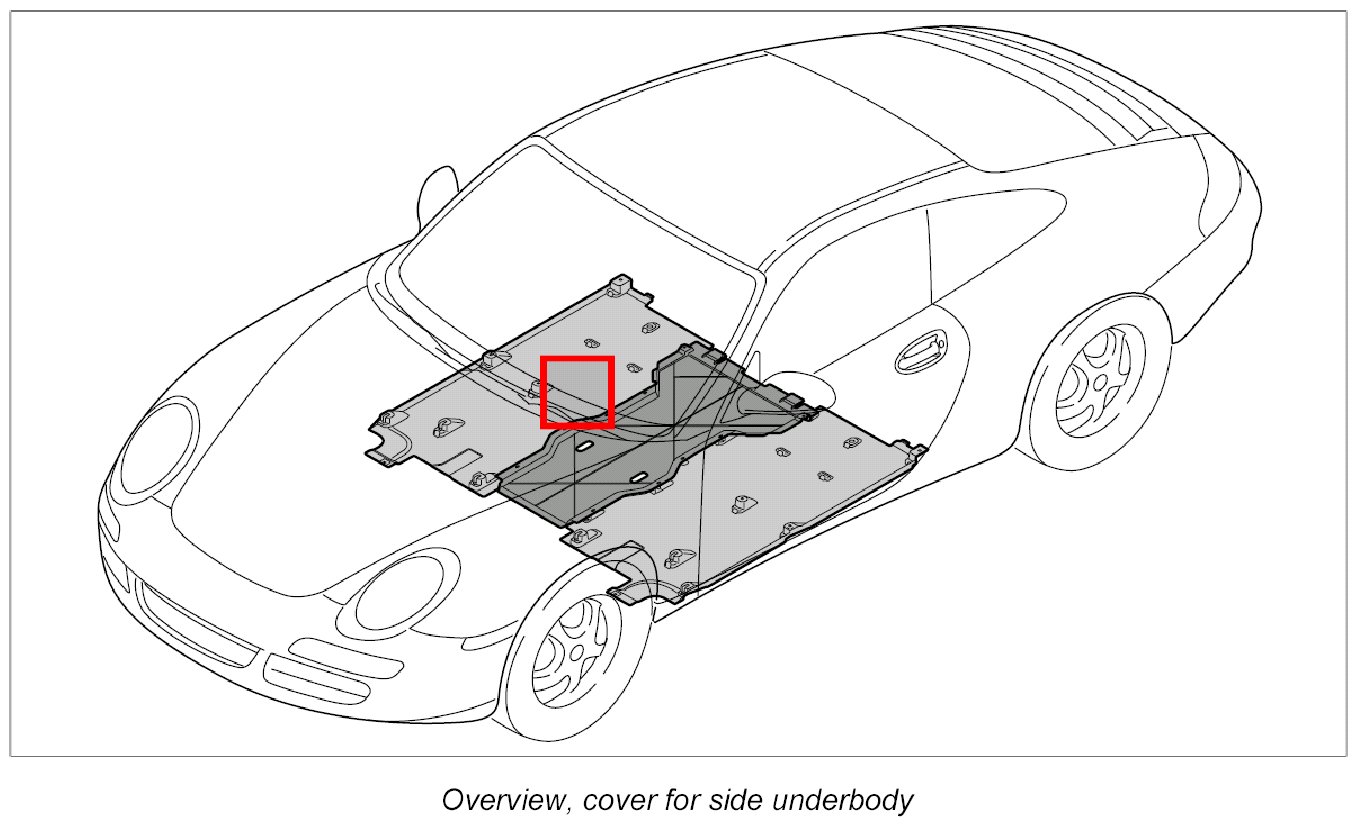

Removing cover for side underbody







INFORMATION: Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2- and fastening nuts -3-.







2. Pull cover for side underbody -1- out of the overlaps.

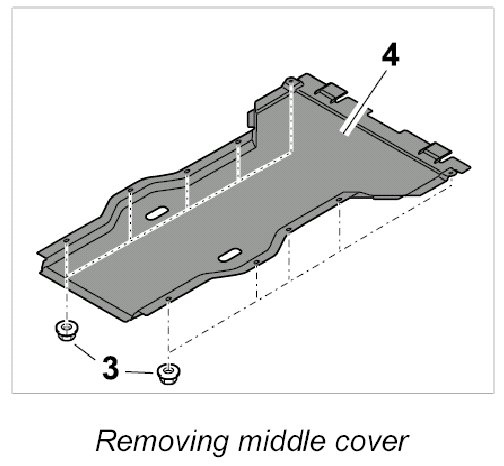

Removing cover for centre underbody







INFORMATION: Fastening nuts cannot be used again following removal.

1. Unscrew fastening nuts -3-.







2. Press covers for side underbody -1- downward slightly and remove cover for centre underbody -4- from the overlaps.

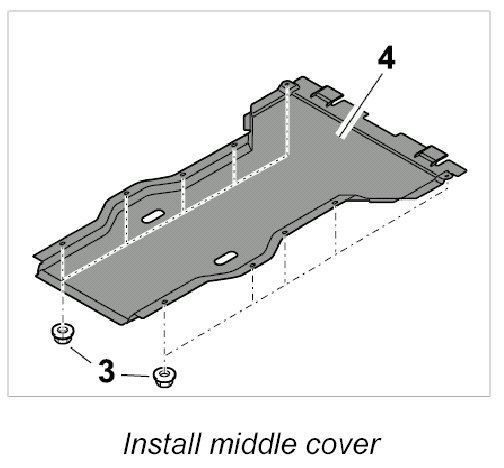

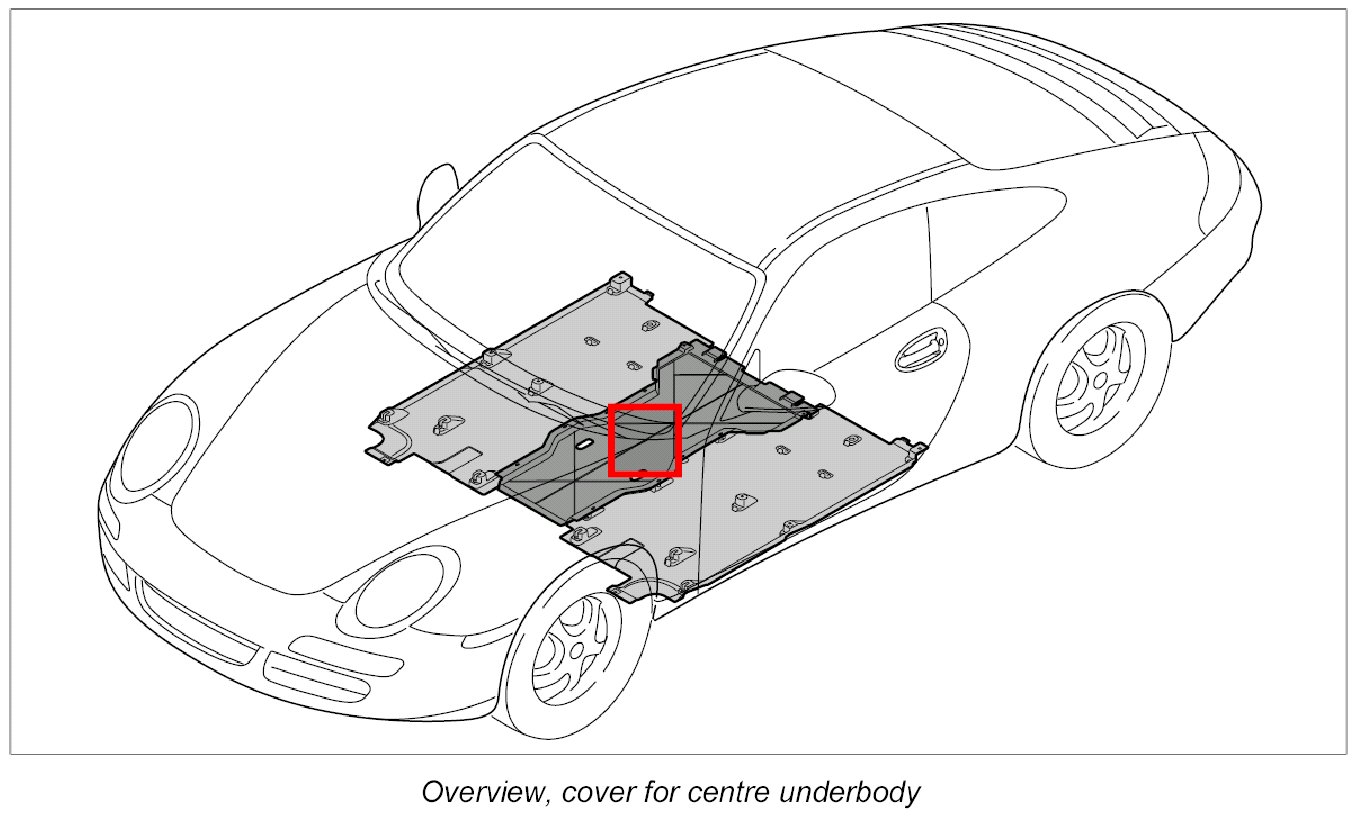

Installing cover for centre underbody







INFORMATION: When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for centre underbody -4-, while doing this, press cover for side underbody -1- slightly downward.







2. Tightening fastening nuts -3-. Tightening torque: 1.5 ftlb.

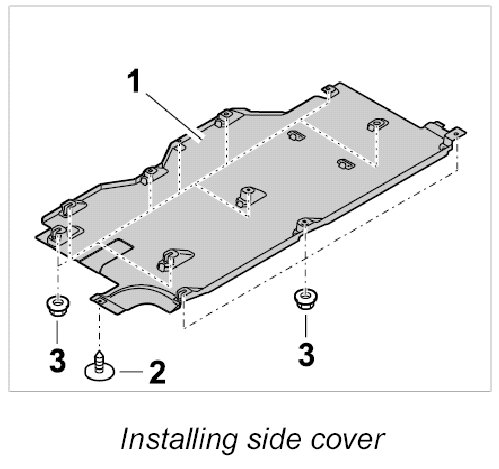

Installing cover for side underbody







INFORMATION: When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for side underbody -1-.







2. Tightening fastening screw -2-. Tightening torque: 1.5 ftlb.
3. Tightening fastening nuts -3-. Tightening torque: 1.5 ftlb.

Subsequent work

Reworking

Lower the vehicle.
