Removing and Installing Cover For Front Underbody

Removing And Installing Cover For Front Underbody

Technical values







Preliminary work

Raise the vehicle. Refer to Lifting the vehicle.

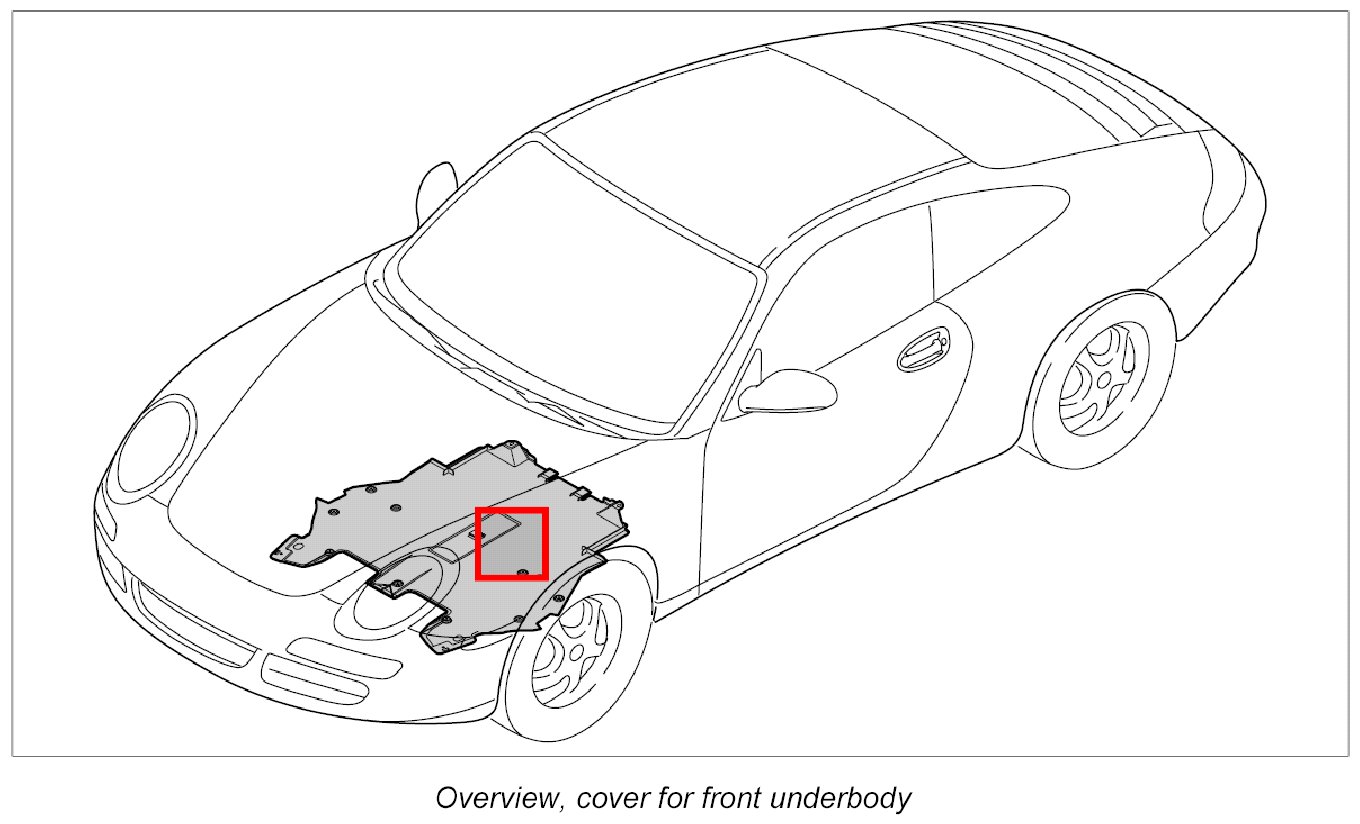

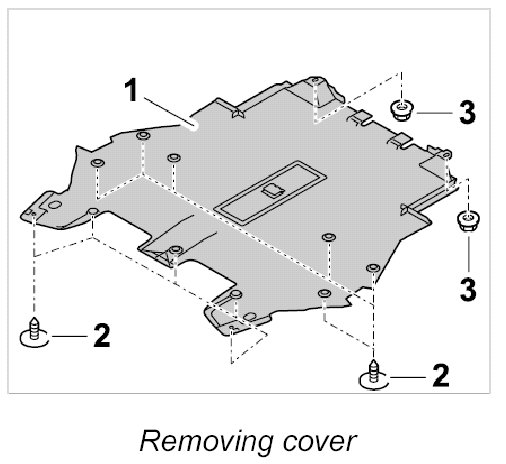

Removing cover for front underbody

INFORMATION: Fastening nuts cannot be used again following removal.







1. Unscrew fastening screws -2- and fastening nuts -3-.







2. Pull cover for front underbody -1- out of the overlap.

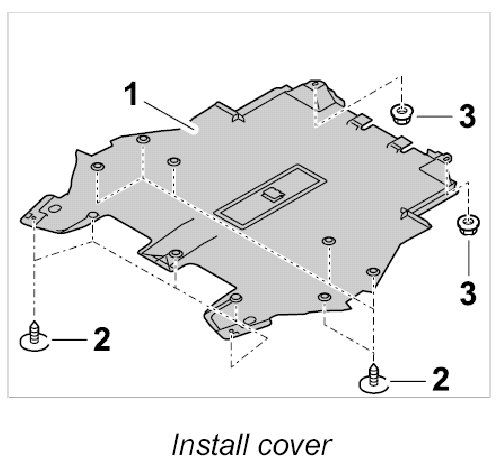

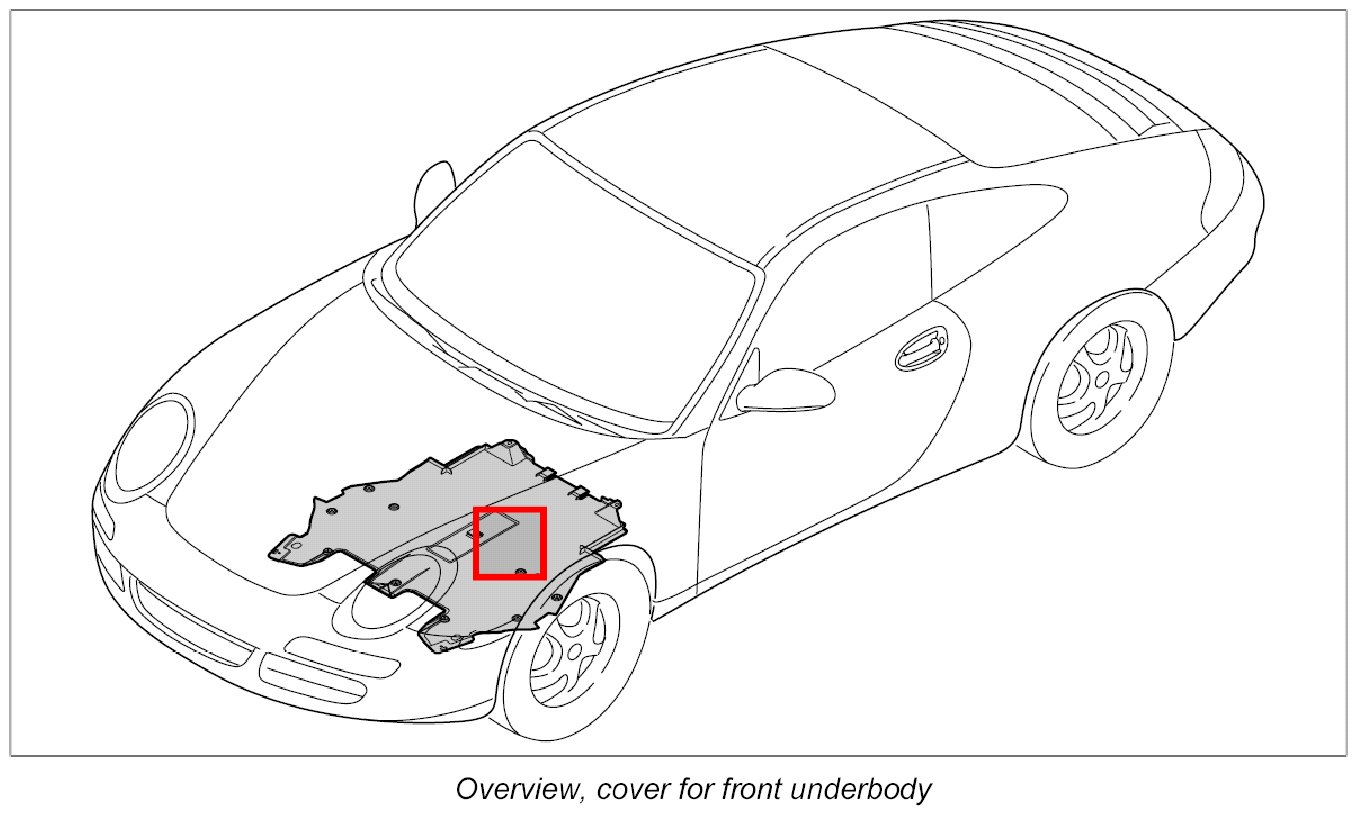

Installing cover for front underbody







INFORMATION: When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for front underbody -1-.







2. Tighten fastening screws -2-. Tightening torque: 1.5 ftlb.
3. Tighten fastening nuts -3-. Tightening torque: 0.5 ftlb.

Subsequent work

Lower the vehicle. Refer to Lifting the vehicle.
