Removing And Installing Cover For Rear Underbody

Technical values







Preliminary work

Raise the vehicle. Refer to Lifting the vehicle

Removing cover for rear underbody







INFORMATION: Fastening nuts cannot be used again following removal.

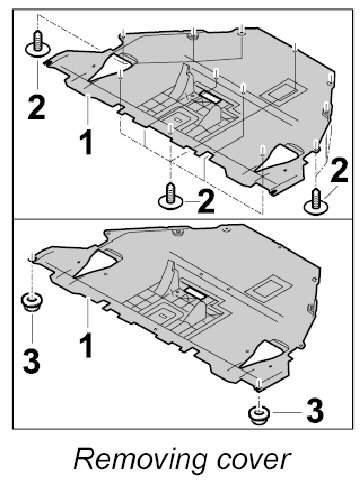

1. Unscrew fastening screws -2- and fastening nuts -3-.







2. Remove cover for rear underbody -1-.

Installing cover for rear underbody

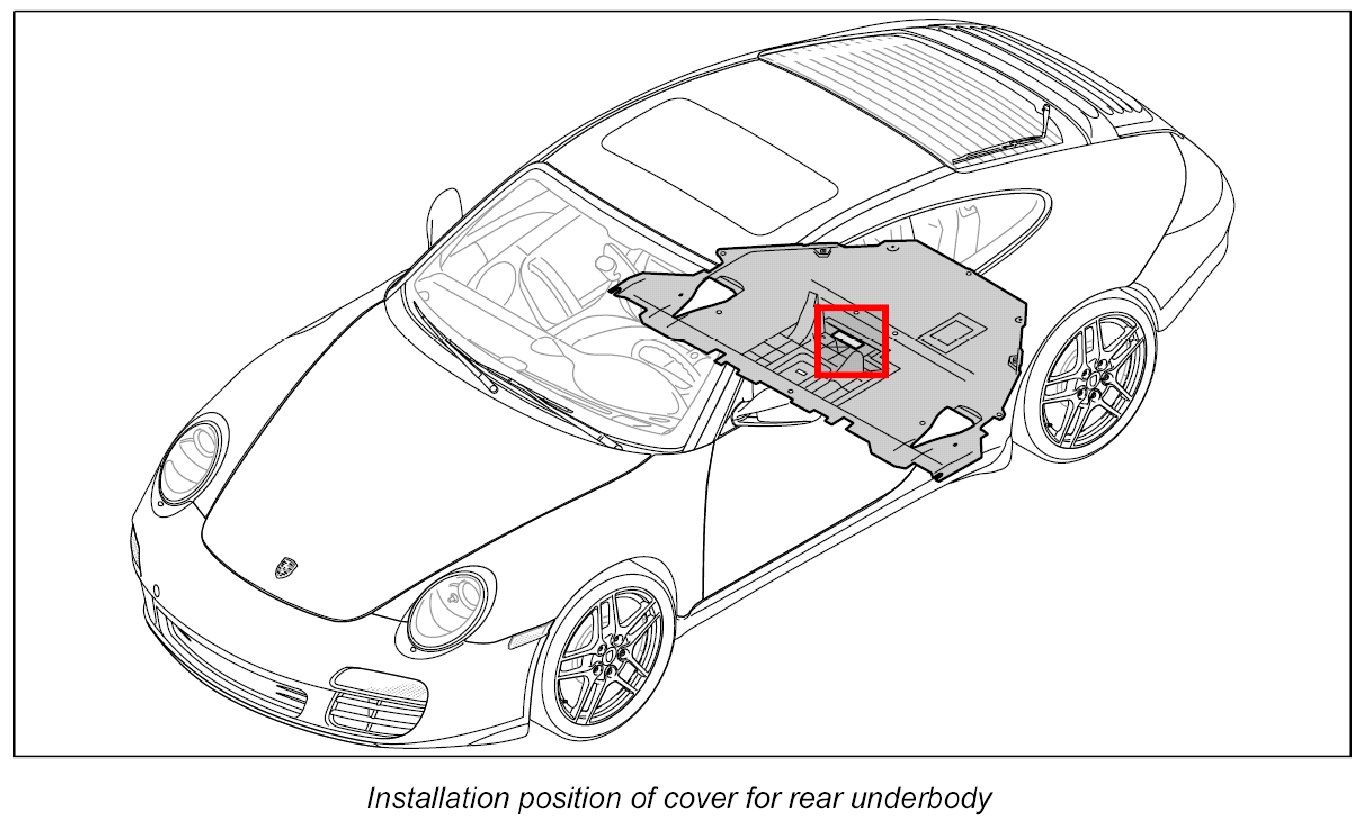

INFORMATION: When sliding in the underbody cover, make sure the overlap is correct.

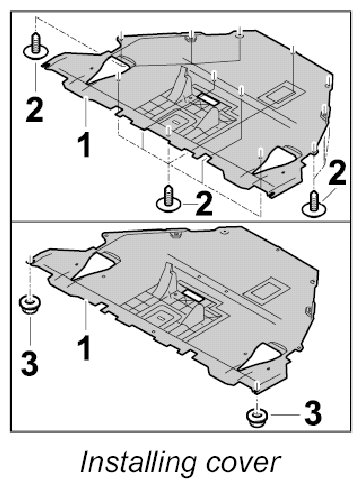

1. Insert cover for rear underbody -1-.







2. Tighten fastening screws -2- and fastening nuts -3-. Tightening torque: 2 Nm (1.5 ftlb.), Tightening torque: 2.5 Nm (2 ftlb.)

Subsequent work

Reworking

Lower the vehicle.
