Evaporative Emission Control Canister: Service and Repair

WM 202519 Removing and installing carbon canister (active carbon filter)

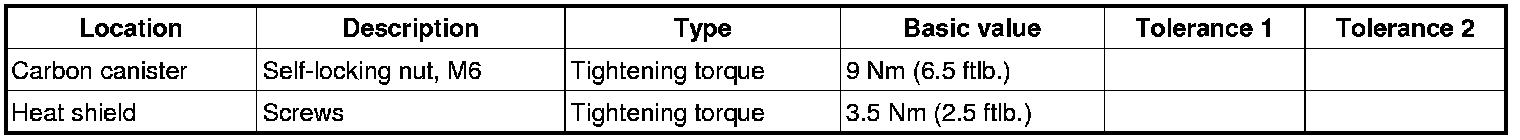

Technical values





Preliminary work

Information

- The carbon canister is installed between the fuel tank and luggage compartment recess (rear axle).

- The carbon canister is only accessible when the vehicle is raised.

- The leakage diagnosis pump cannot be separated from the carbon canister.

1. Remove rear underbody panelling. -> 519419 Removing and installing cover for rear underbody 519419 Removing and Installing Cover for Rear Underbody

Removing carbon canister

Information

Only one type of active carbon filter is supplied as a spare part. The supplied hose will have to be adapted to suit the peripheral equipment on the vehicle, depending on the market and equipment type. It may be necessary to pull off the hose and connect the active carbon filter directly to the vacuum lines on the sports flap exhaust system for example. The hose specified in PET must also be used for the US version of the V8 S with sports flap exhaust system and the V8 Turbo. The hose on the active carbon filter must be disposed of in this case.

1. In front of the carbon canister, loosen the cover (heat protection panel -1- ) only at the top middle position of the four fastening screws -four screws 2-. There must be sufficient clearance around the carbon canister for removing and installing it.

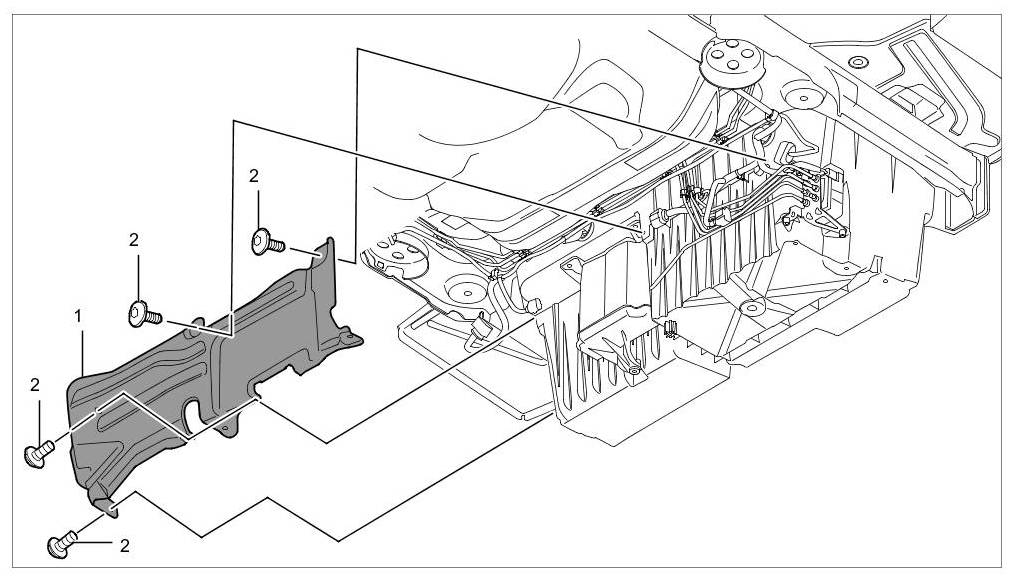

Heat protection panel

2. Remove carbon canister.
2.1. Disconnect line connections on the carbon canister (one more connection with the leakage diagnosis pump). => Carbon canister with leakage diagnosis pump => Carbon canister without leakage diagnosis pump

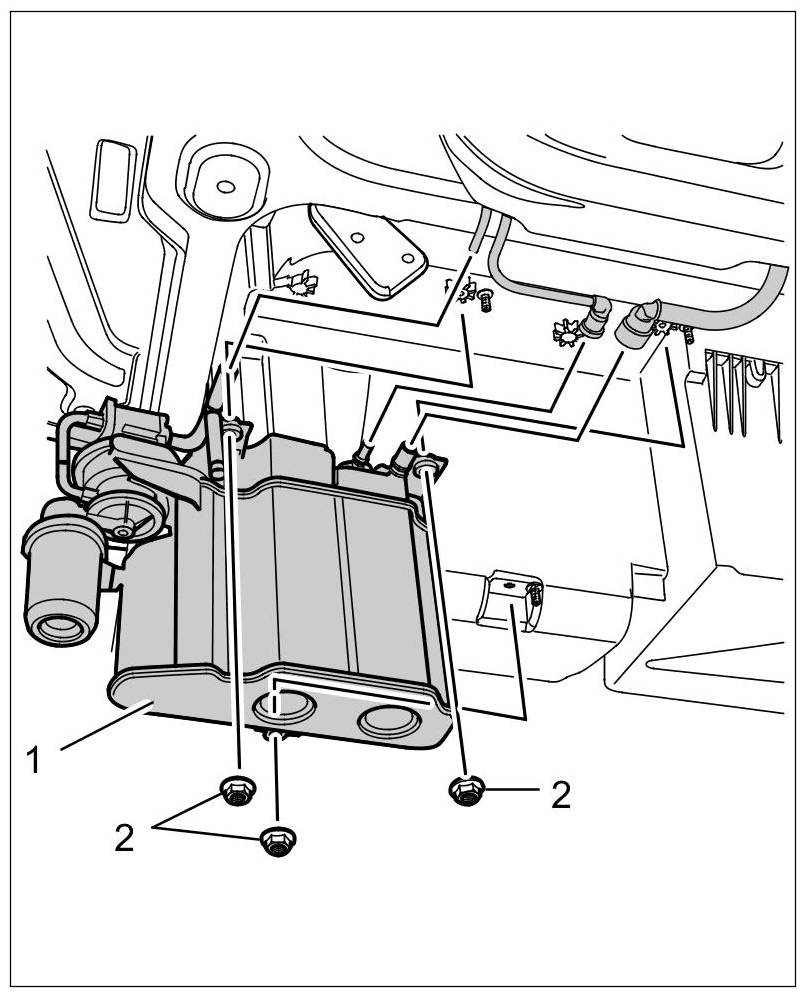

Carbon canister with leakage diagnosis pump

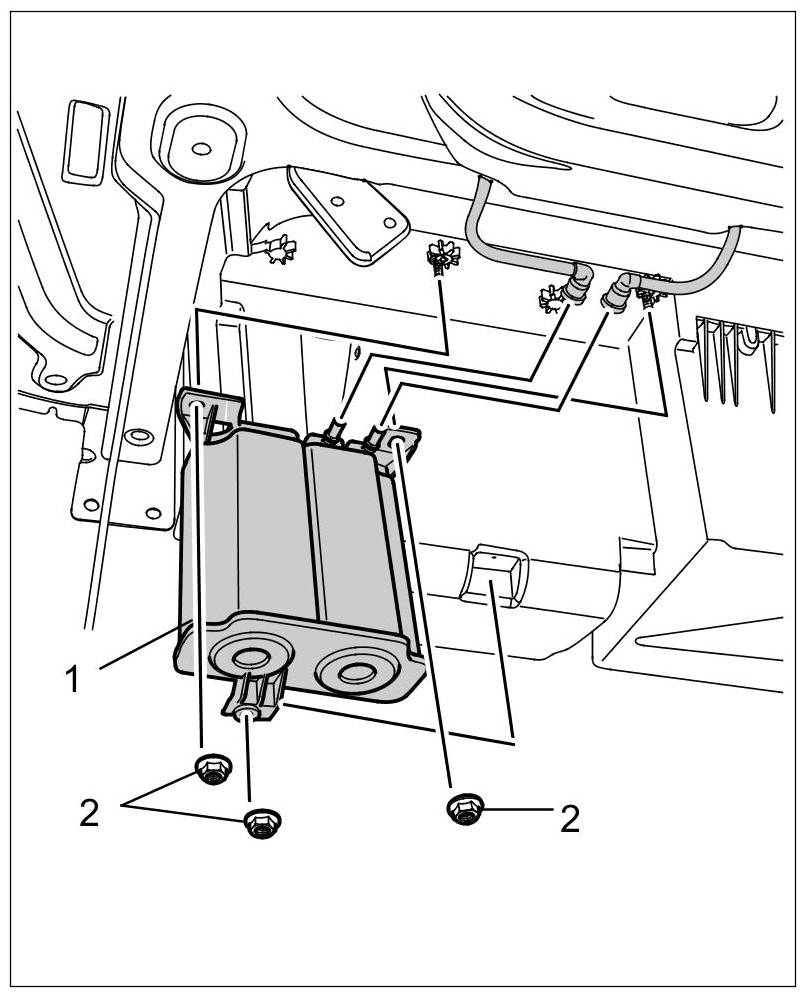

Carbon canister without leakage diagnosis pump

2.2. Unscrew nuts -2- -2- and remove carbon canister by pulling it downwards.

Installing carbon canister

The carbon canister is installed in reverse order to removal.
- Fastening nuts on carbon canister (self-locking, replace)=> Tightening torque: 9 Nm (6.5 ftlb.)
- Heat shield screws=> Tightening torque: 3.5 Nm (2.5 ftlb.)

Subsequent work

1. Fit rear underbody panelling. -> 519419 Removing and installing cover for rear underbody 519419 Removing and Installing Cover for Rear Underbody
