692519 Removing and installing rear belt lock


WM 692519 Removing and installing rear belt lock

Technical values





Preliminary work

1. Remove rear seat. -> 724819 Removing and installing rear seat - section on "Removing and installing" 724819 Removing and installing rear seat

Removing rear belt lock

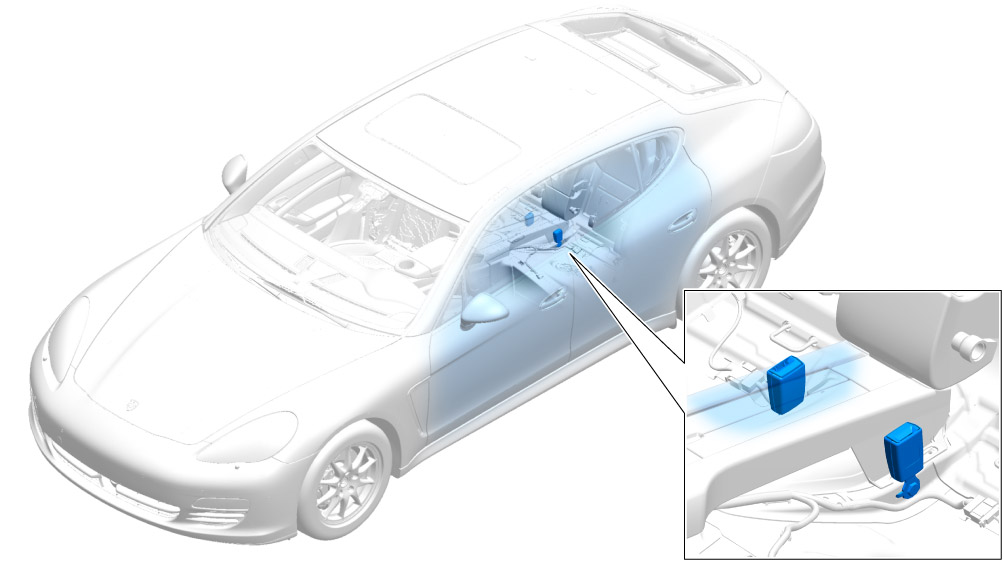

Rear belt lock

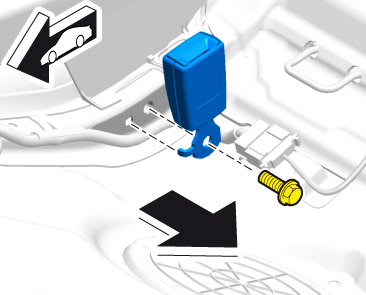

1. Unscrew fastening screws on belt lock.





Rear belt lock

2. Remove the belt lock.

Installing rear belt lock

Installation is performed in reverse order to removal.
1. Tighten fastening screw on belt lock to the specified tightening torque => Tightening torque: 50 Nm (37 ftlb.).

Subsequent work

1. Install rear seat. -> 724819 Removing and installing rear seat - section on "Installing" 724819 Removing and installing rear seat
