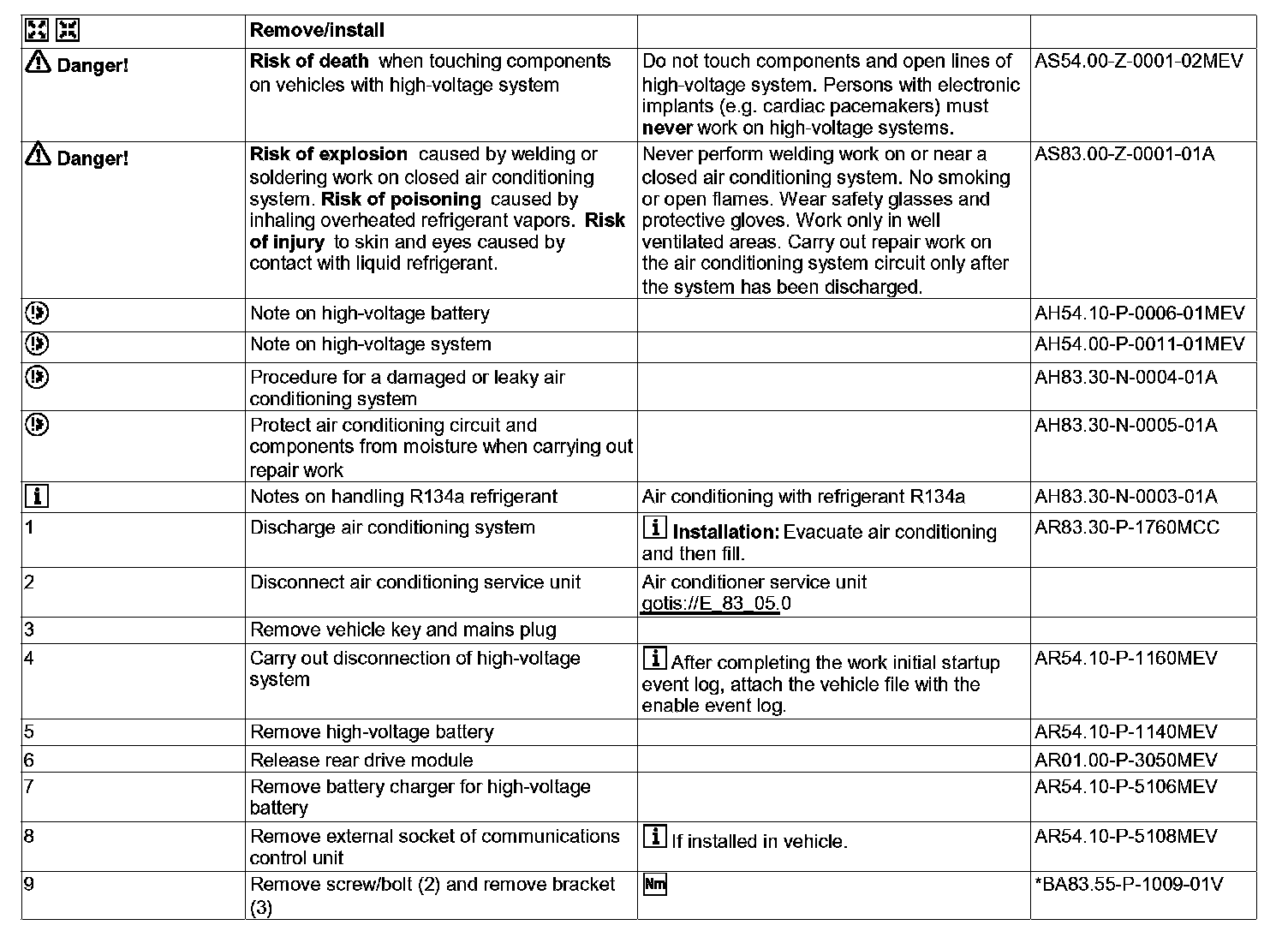

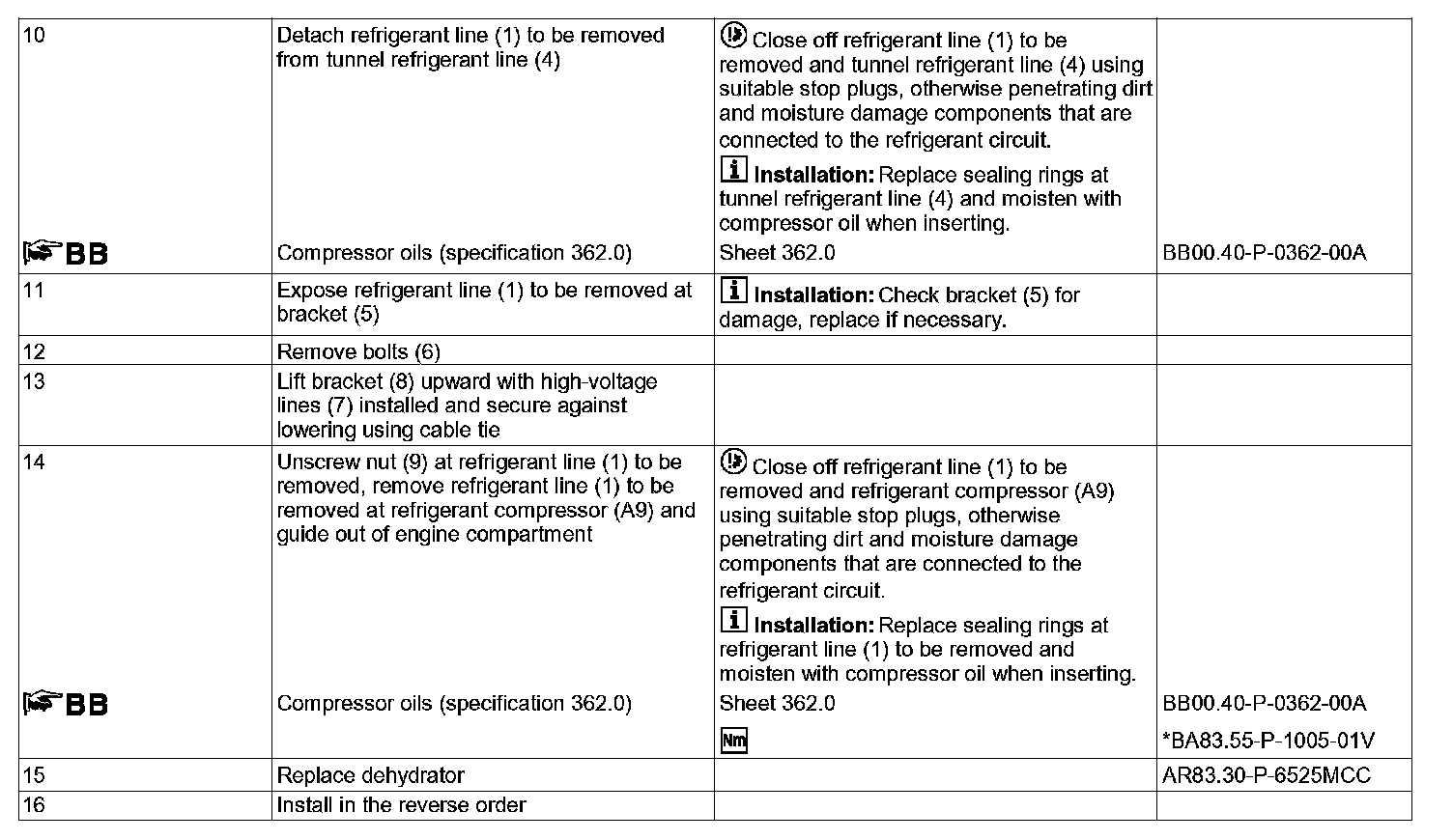

AR83.30-P-7810MEV Remove/Install Refrigerant Lines At Refrigerant Compressor
AR83.30-P-7810MEV Remove/install Refrigerant Lines At Refrigerant Compressor - MODEL 451.391 /491 with ENGINE 780.009

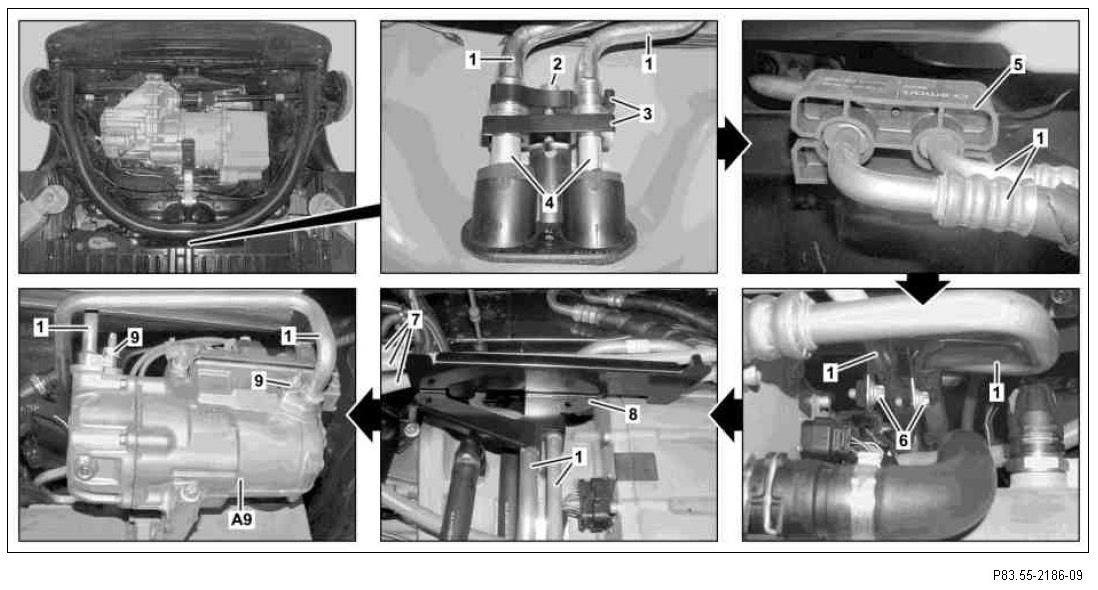

1
Refrigerant lines
2
Screw
3
Bracket
4
Tunnel refrigerant line
5
Bracket
6
Bolts
7
High-voltage lines
8
Bracket
9
Nut
A9
Refrigerant compressor
