Pads

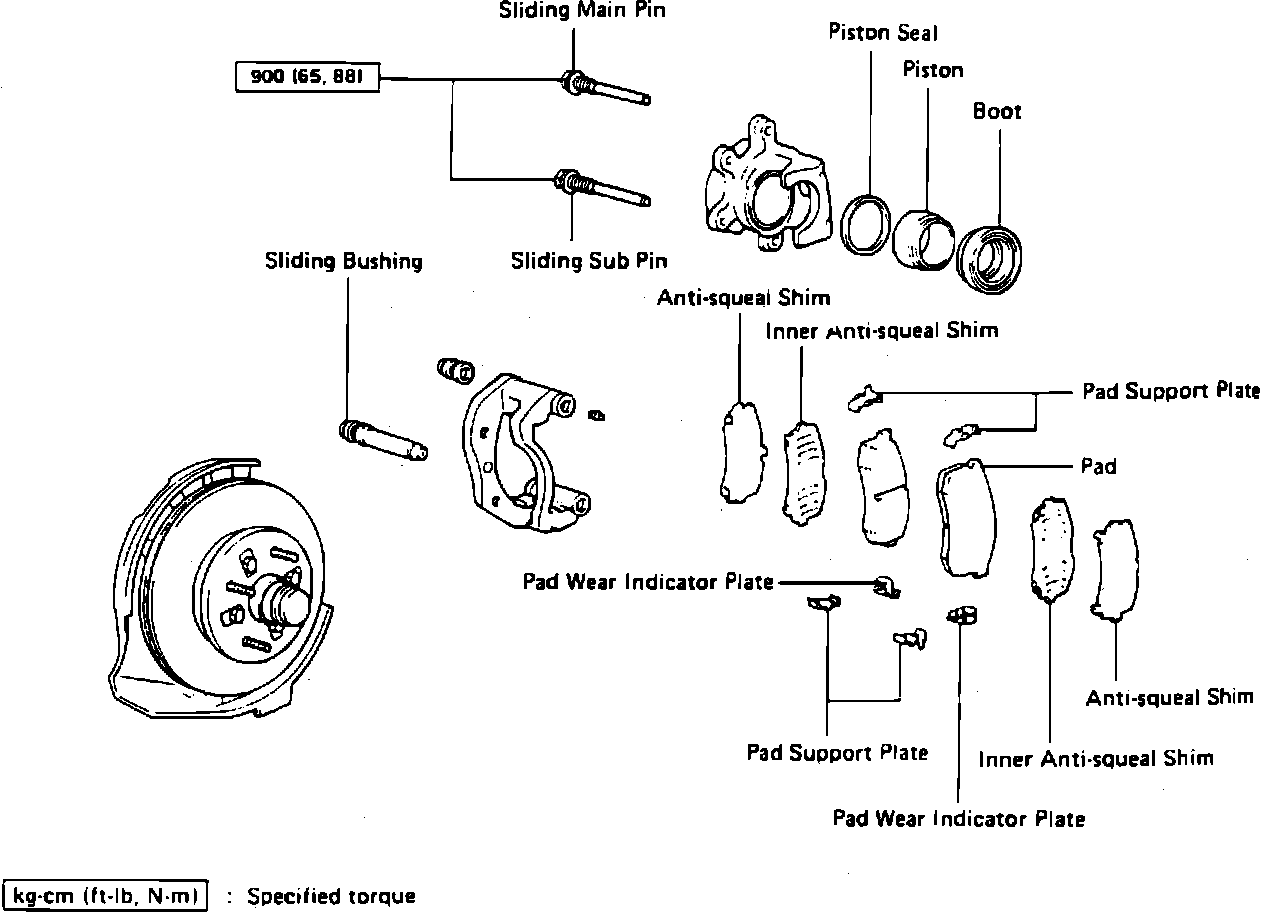

Fig. 5 Exploded View Of FS17 Disc Brake Assembly. 2WD:

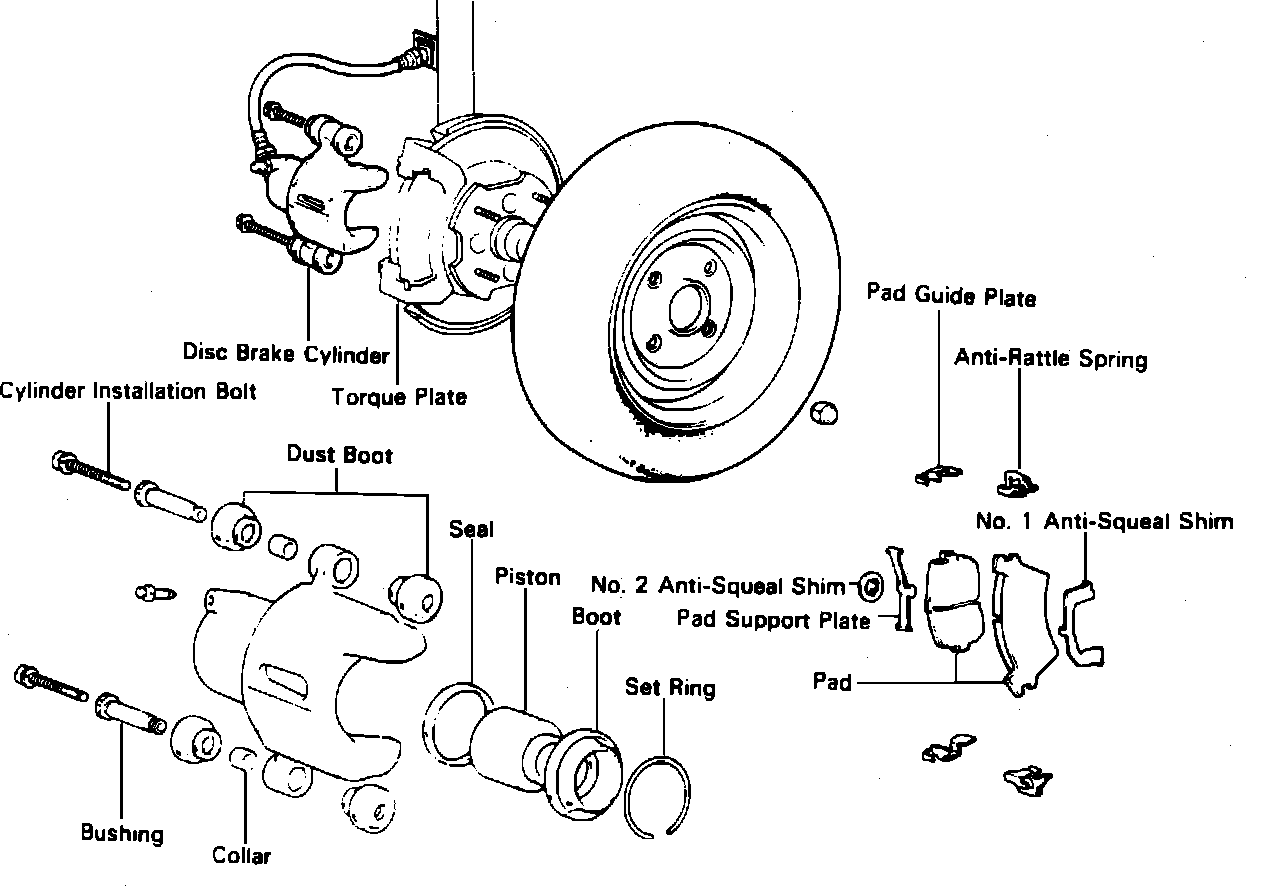

Fig. 6 Exploded View Of FS17 & F18 Disc Brake Assembly. 1990 2WD:

1. Check that pad thickness is no less than .039 inch. Replace pads if thinner.
2. Raise and support vehicle and remove front wheel.
3. Remove caliper pin on subpin side, Figs. 5 and 6.
4. Pivot caliper up and support, leaving brake hose connected.
5. Remove brake pads, anti-squeal shim(s) and 4 support plates.
6. Reverse procedure to install.
