Pads

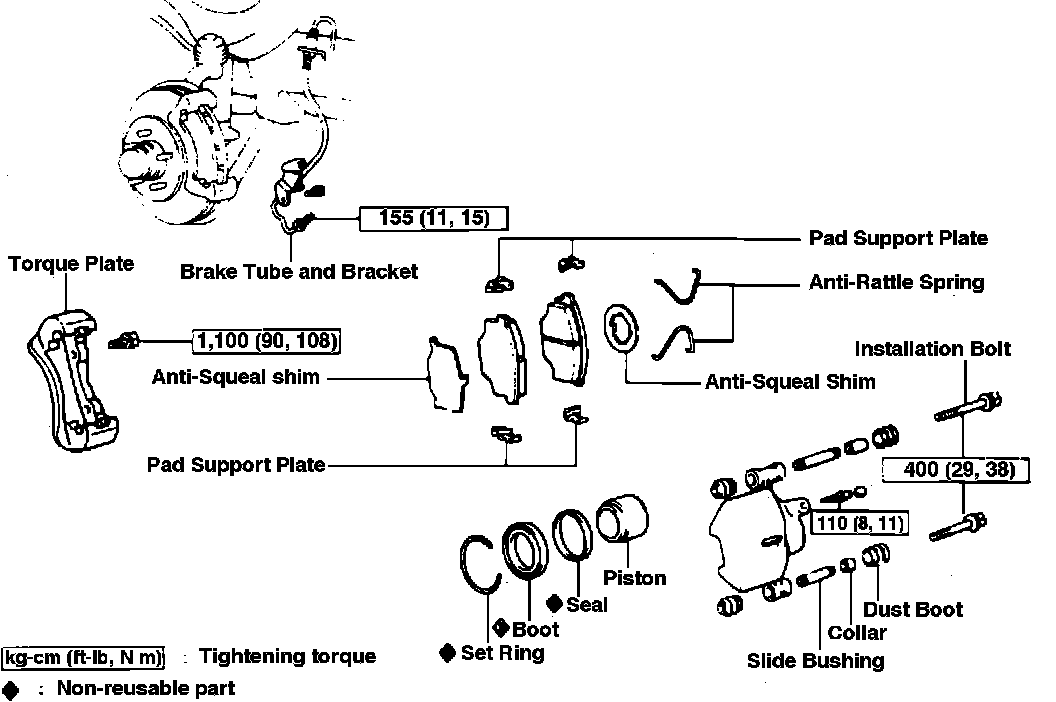

Fig. 7 Exploded View Of PD60 Disc Brake Assembly. 2WD:

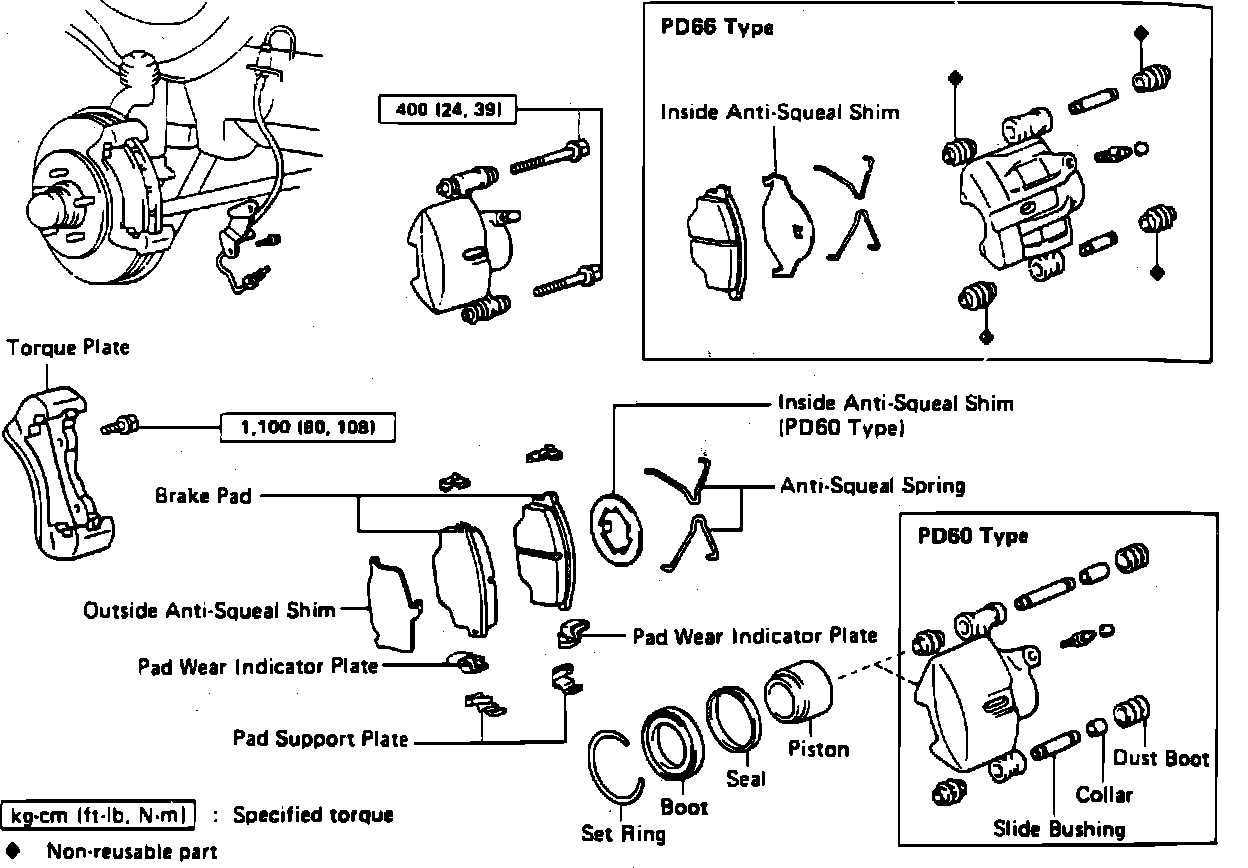

Fig. 8 Exploded View Of PD60 & PD66 Disc Brake Assembly. 2WD:






1. Raise and support vehicle and remove tire and wheel assembly.
2. Remove caliper attaching bolts, Figs. 7 and 8, and the caliper, supporting caliper out of way so that brake hose is not stretched.
3. Remove two anti-rattle springs, brake pads, anti-squeal shims and the four support plates.
4. Reverse procedure to install, torquing caliper mounting bolts to 29 ft. lbs.
