With Tilt Column
With Tilt Column

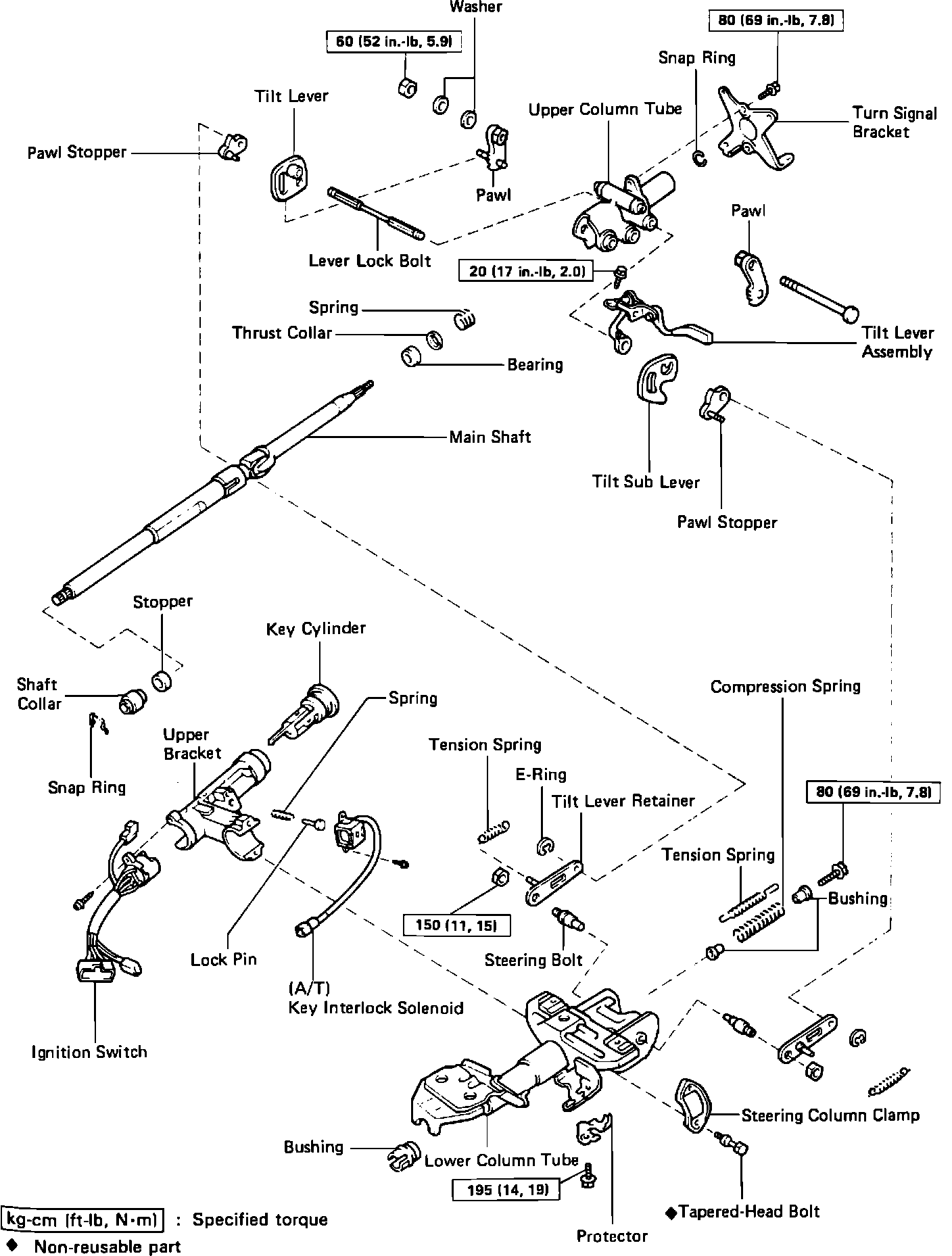

Fig. 26 Exploded View Of Steering Column. 1989-91 Pickup & 1990-91 4Runner w/Tilt Column:
