Removal

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

4. REMOVE NO. 2 ENGINE UNDER COVER

(a) Remove the 6 bolts and under cover.

5. REMOVE NO. 1 ENGINE UNDER COVER

(a) Remove the 6 bolts and under cover.

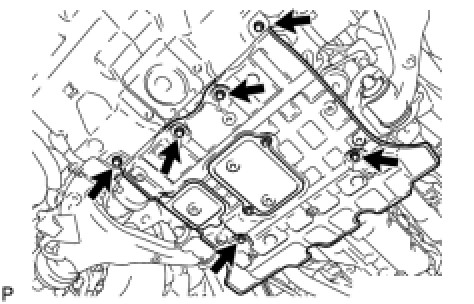

6. REMOVE OIL PAN PROTECTOR ASSEMBLY

(a) Remove the 4 bolts and oil pan protector.

7. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

8. REMOVE UPPER RADIATOR SUPPORT SEAL

9. DRAIN ENGINE COOLANT Service and Repair

10. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

(a) Remove the clip and pin, and disconnect the gear shifting rod from the transmission control shaft lever RH.

11. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

(a) Remove the front propeller shaft Removal.

12. REMOVE PROPELLER SHAFT ASSEMBLY

(a) Remove the propeller shaft Removal.

13. REMOVE TAILPIPE ASSEMBLY Removal

14. REMOVE CENTER EXHAUST PIPE ASSEMBLY Removal

15. REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY Removal

16. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

17. REMOVE NO. 1 MANIFOLD STAY Removal

18. REMOVE NO. 2 MANIFOLD STAY Removal

19. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE Removal

20. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR Removal

21. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal

22. REMOVE STARTER COVER Removal

23. REMOVE STARTER ASSEMBLY Removal

24. REMOVE DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT

(a) Remove the flywheel housing side cover.

(b) Turn the crankshaft to gain access to the 6 bolts and remove the bolts while holding the crankshaft pulley setting bolt with a wrench.

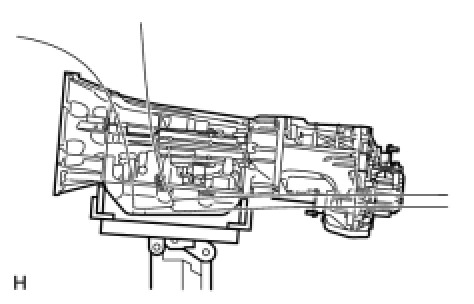

25. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY

(a) Support the transmission with a transmission jack. Lift the transmission slightly from the crossmember.

26. REMOVE NO. 2 FRAME CROSSMEMBER SUB-ASSEMBLY

(a) Remove the engine mounting hole cover.

(b) Remove the 4 bolts of the rear engine mounting insulator.

27. REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR

(a) Remove the 2 bolts and engine mounting heat insulator.

(b) Remove the 4 bolts and rear engine mounting insulator from the transmission.

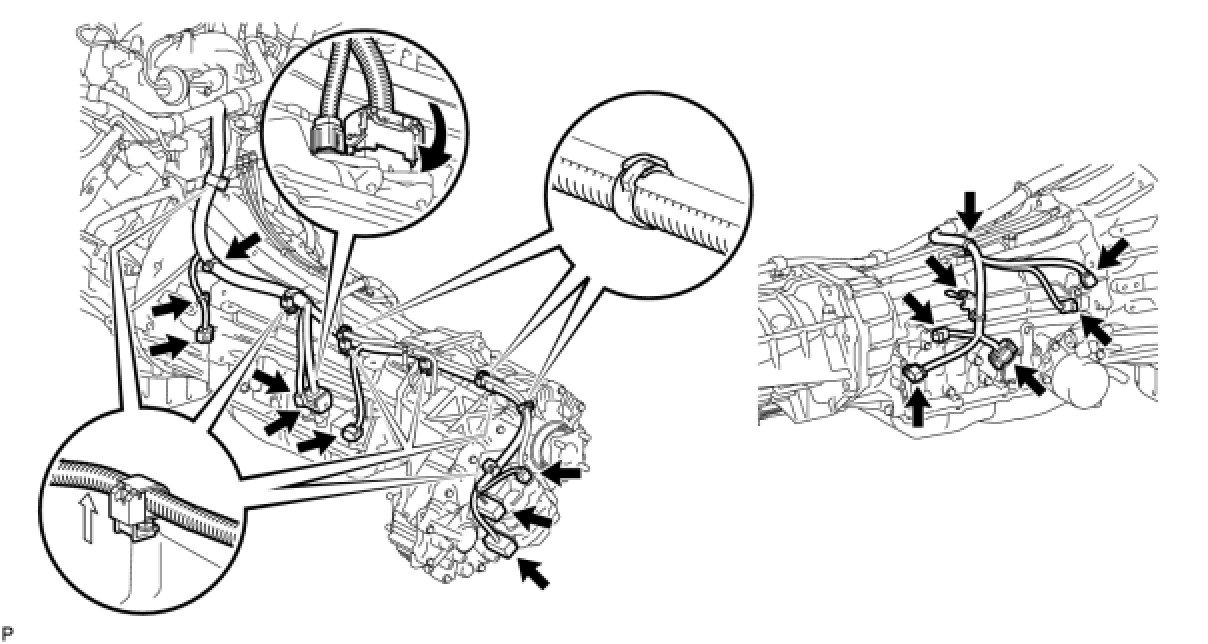

28. DISCONNECT WIRE HARNESS AND CONNECTOR

(a) Remove the bolt and disconnect the ground cable.

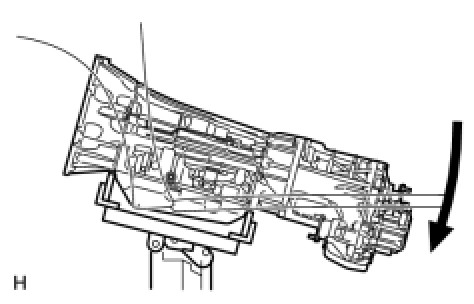

(b) Tilt the transmission downward.

NOTICE:
Make sure the cooling fan does not contact the fan shroud.

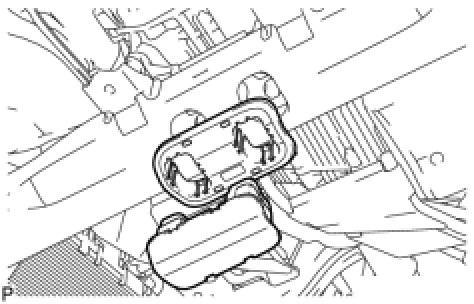

(c) Disconnect the park/neutral position switch connector, 2 transmission wire connectors, 2 speed sensor connectors and 3 transfer control side connectors.

HINT
Detach the claw, press down the lever, and then disconnect the transmission wire connector.

(d) Disconnect the 4 connector clamps and 6 harness clamps.

(e) Remove the bolt and disconnect the wire harness.

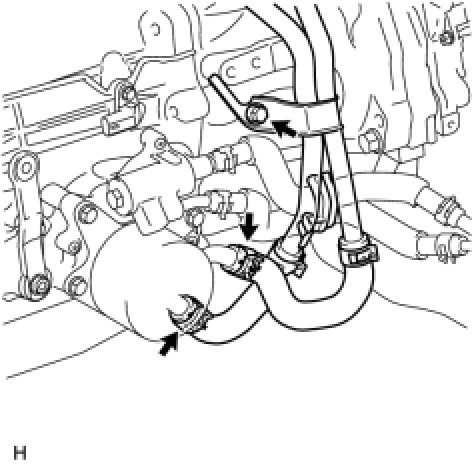

29. DISCONNECT NO. 2 WATER BY-PASS PIPE

(a) Remove the bolt and disconnect the 2 water by-pass hoses from the transmission oil cooler. Then separate the by-pass pipe from the automatic transmission.

NOTICE:
Use a container to catch any coolant which flows out of the water by-pass hoses.

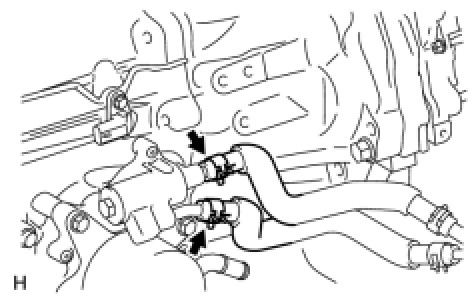

30. DISCONNECT TRANSMISSION OIL COOLER HOSE

(a) Disconnect the 2 transmission oil cooler hoses from the transmission oil thermostat.

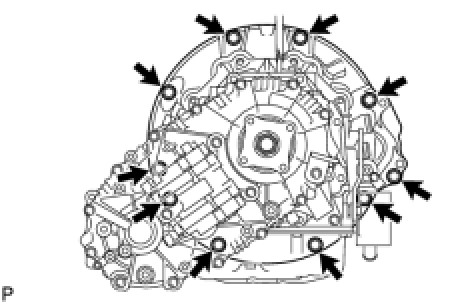

31. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

(a) Remove the 10 bolts and transmission.

NOTICE:
Do not use excess force to pry off the transmission assembly.

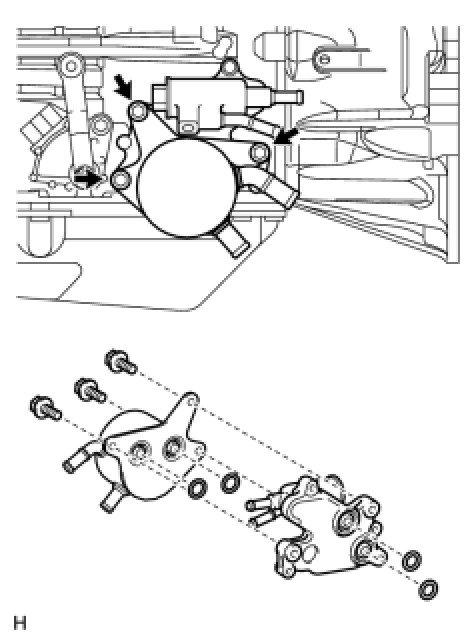

32. REMOVE TRANSMISSION OIL COOLER ASSEMBLY

(a) Remove the 3 bolts and transmission oil cooler with transmission oil thermostat.

(b) Separate the transmission oil cooler from the transmission oil thermostat.

(c) Remove the 4 O-rings.

33. DISCONNECT BREATHER PLUG HOSE

(a) Disconnect the 2 breather plug hoses from the harness clamp bracket.

34. REMOVE TRANSFER ASSEMBLY

(a) Detach the 3 breather hose clamps from the automatic transmission breather tube.

(b) Disconnect the clamp of the ground cable from the transfer case lower protector.

35. REMOVE HARNESS CLAMP BRACKET

(a) Remove the 5 bolts and 5 brackets.

36. REMOVE TORQUE CONVERTER ASSEMBLY

37. INSPECT TORQUE CONVERTER ASSEMBLY

(a) Inspect the torque converter clutch Testing and Inspection.
