Back Door Power Window Switch





WINDOW / GLASS: BACK DOOR POWER WINDOW SWITCH: INSPECTION

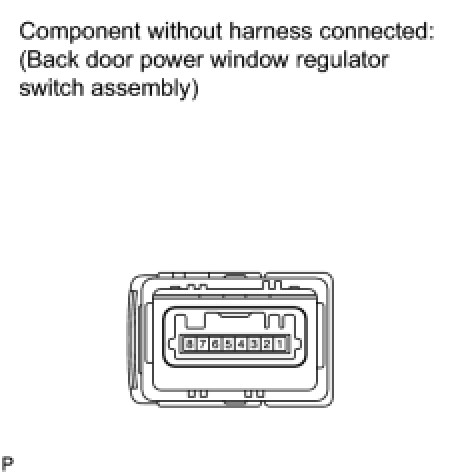

1. INSPECT BACK DOOR POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Check the resistance.





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the back door power window regulator switch.

(b) Check the illumination operation.

(1) Apply battery voltage to the back door power window regulator switch and check that the illumination comes on.

OK:





If the result is not as specified, replace the back door power window regulator switch.
