Telephone Operating Electronics Control Module, Through 11.06

Telephone Operating Electronics Control Module, Through 11.06





The telephone operating electronics control module is installed at the left above the glove compartment.

Removing

- Remove cover from glove compartment.

- Remove owner's manual compartment.

- Remove radio or radio navigation system if this was not already done with removal of the owner's manual compartment. "Delta" radio, removing. Refer to --> [ Delta Radio ], "Radio Navigation System 2" with MFD, removing --> [ Radio Navigation System 2 with 6.5 inch Color Display ] Radio Navigation System 2 with 6.5 inch Color Display.

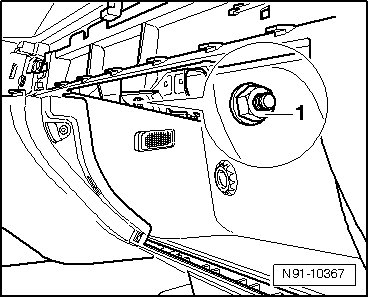

- Remove control module bracket mounting bolt from inside glove compartment - 1 -.





- Remove operating electronics control module and guide it into glove compartment with bracket and wires connected.

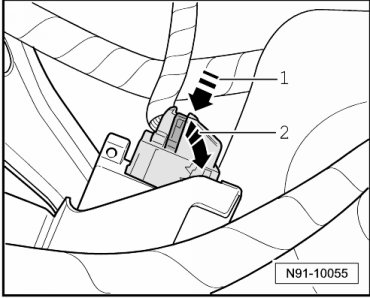

- Release connector by pressing on catch spring - 1 - and swing bracket - 2 - in direction of arrow.

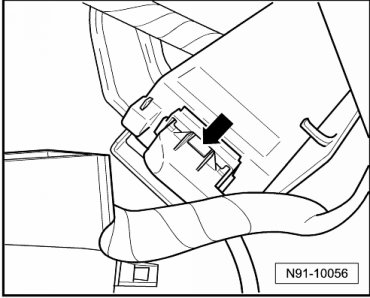

- Release connector by pressing on catch spring - arrow - and remove connector.





Installing

Install in reverse order of removal.
