Charging System: Locations

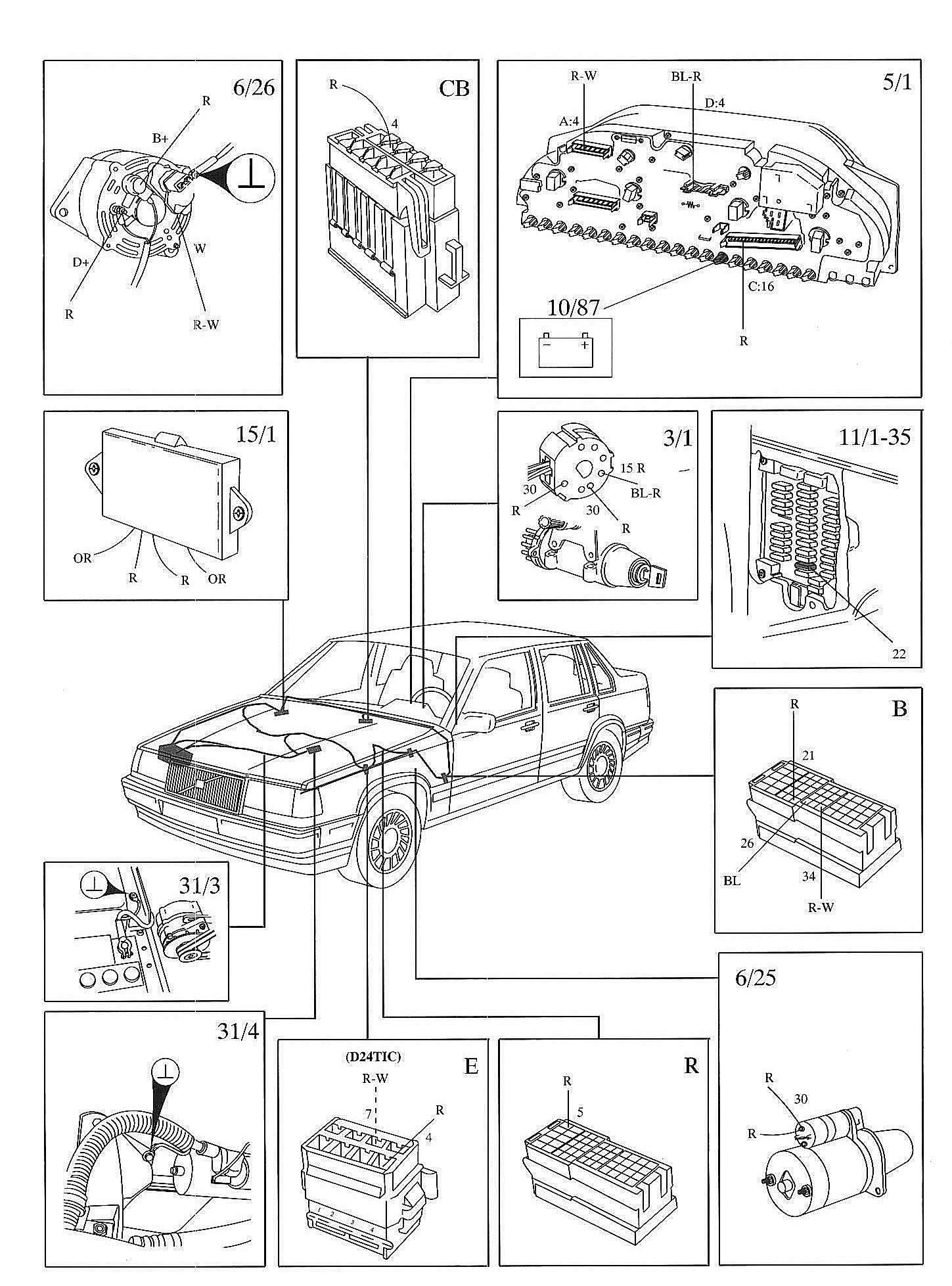

Component / Connector Locations:

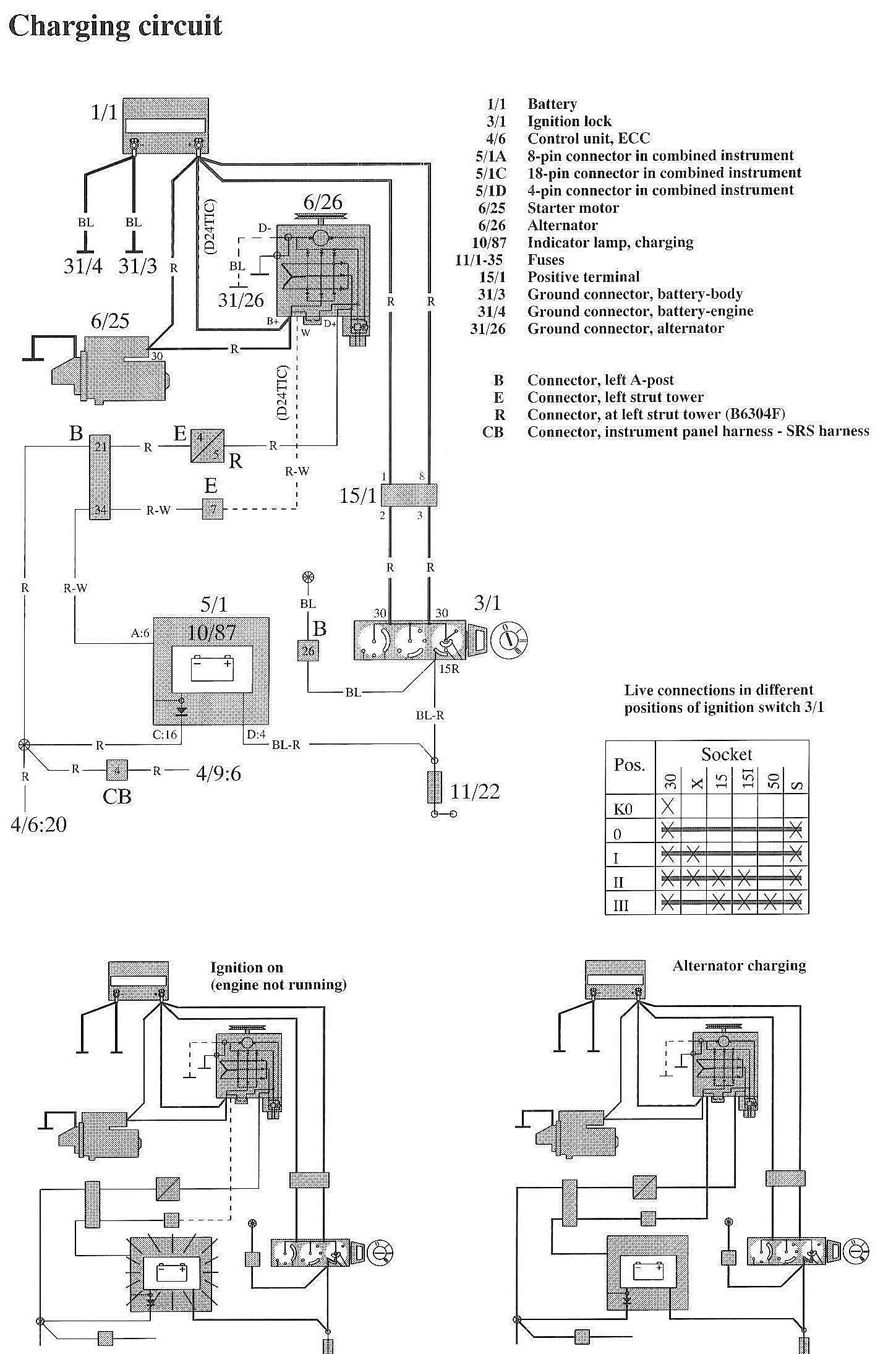

Wiring Diagrams:




LEGEND
1/1 Battery
3/1 Ignition lock
4/6 Control unit, ECC
5/1A 8-pin connector in combined instrument
5/1C 18-pin connector in combined instrument
5/1D 4-pin connector in combined instrument
6/25 Starter motor
6/26 Alternator

10/87 Indicator lamp, charging
11/1-35 Fuses
15/1 Positive terminal
31/3 Ground connector, battery-body
31/4 Ground connector, battery-engine
31/26 Ground connector, alternator
