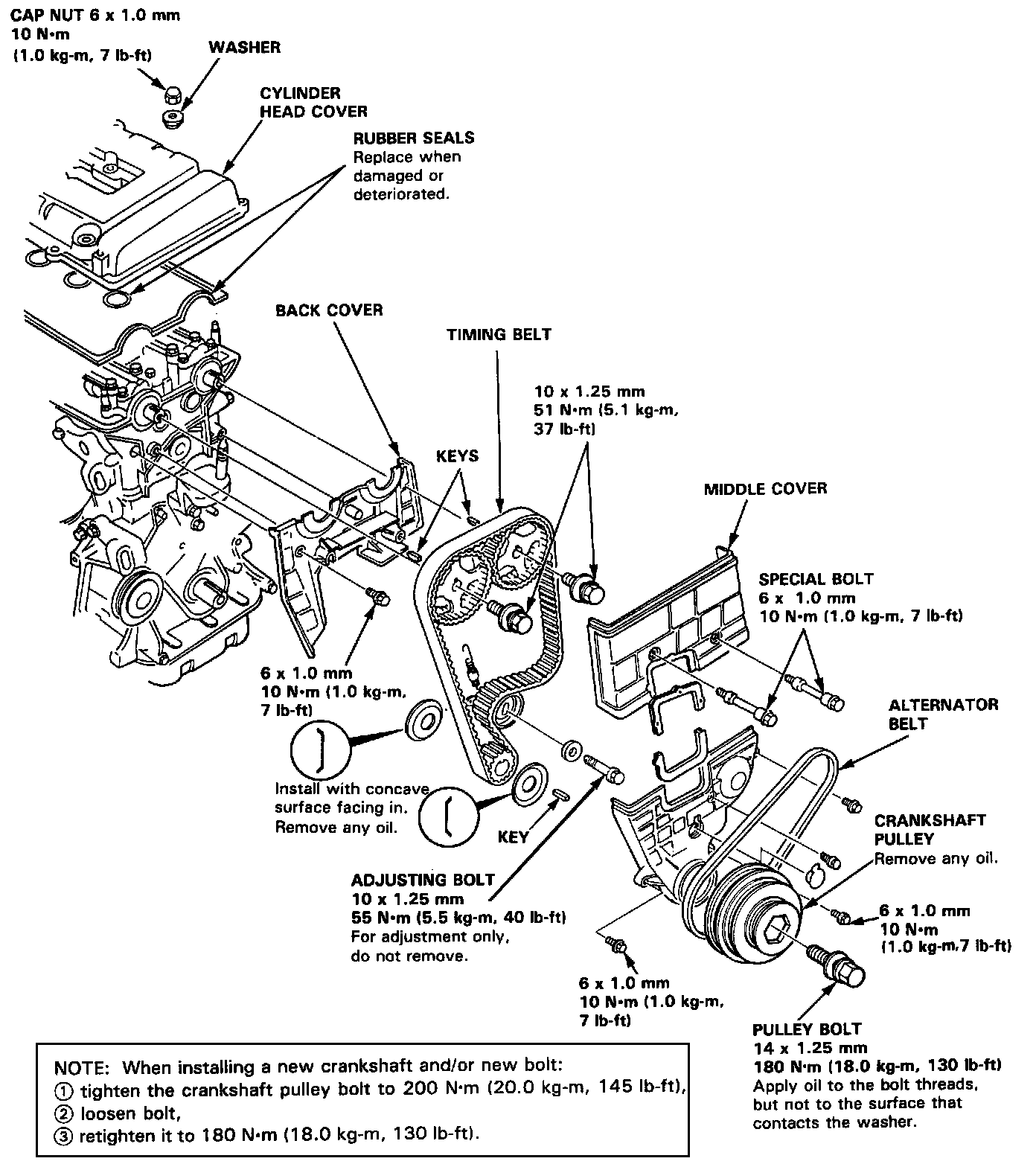

System Diagram

Timing Belt

NOTE: After installation, adjust the tension of each belt.
- Refer to Charging System for alternator belt adjustment.
- Refer to Steering System, for power steering pump belt adjustment.
- Refer to Heating and Air Conditioning, for air conditioning compressor belt adjustment.
- Mark direction of rotation before removing.

NOTE: When installing a new crankshaft and/or new bolt:
(1) tighten the crankshaft pulley bolt to 200 N.m (20.0 kg.m, 145 lb.ft)
(2) loosen bolt
(3) retighten it to 180 N.m (18.0 kg.m, 130 lb.ft)
