Front Compartment

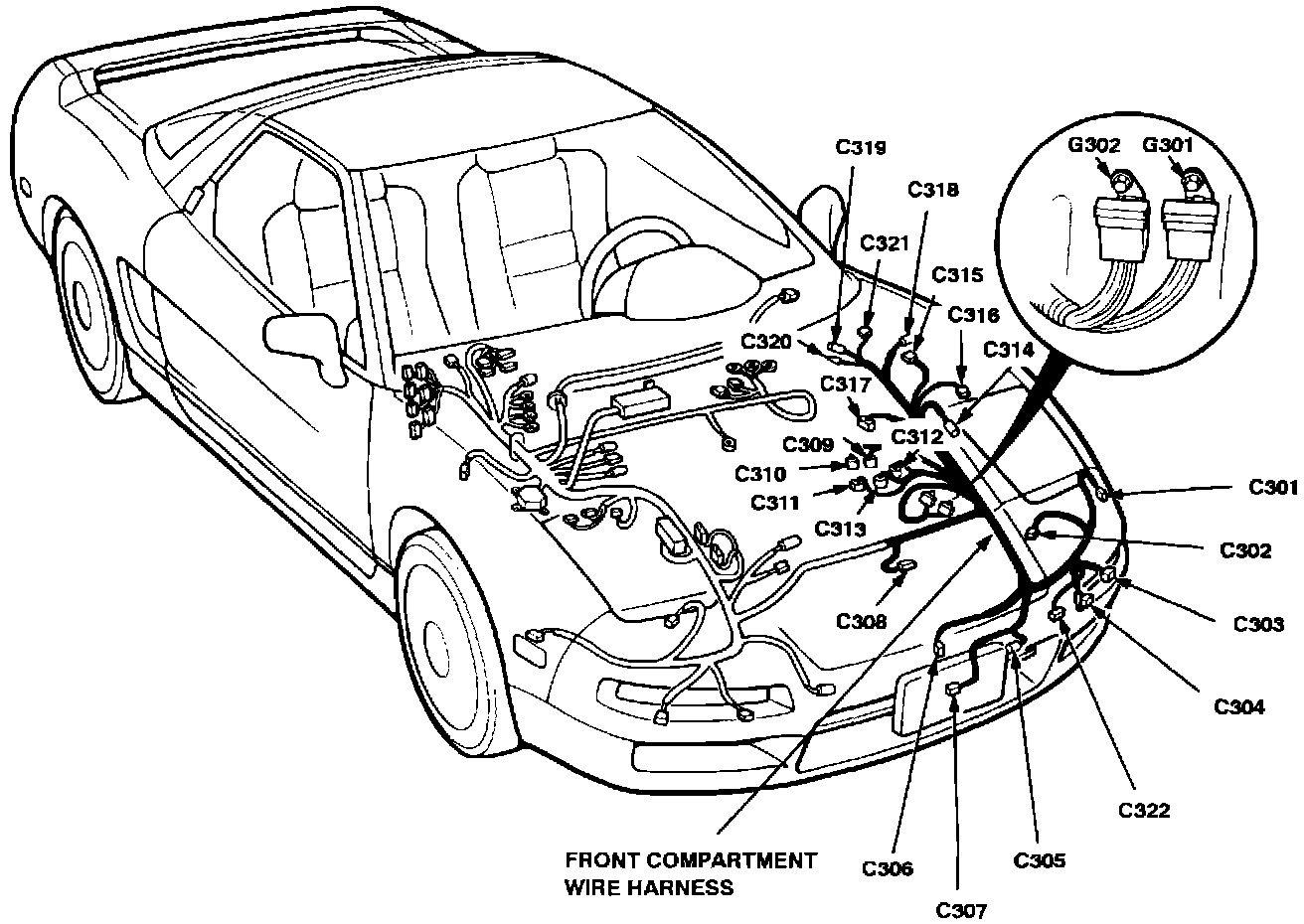

Connector Identification And Wire Harness Routing: Front Compartment:

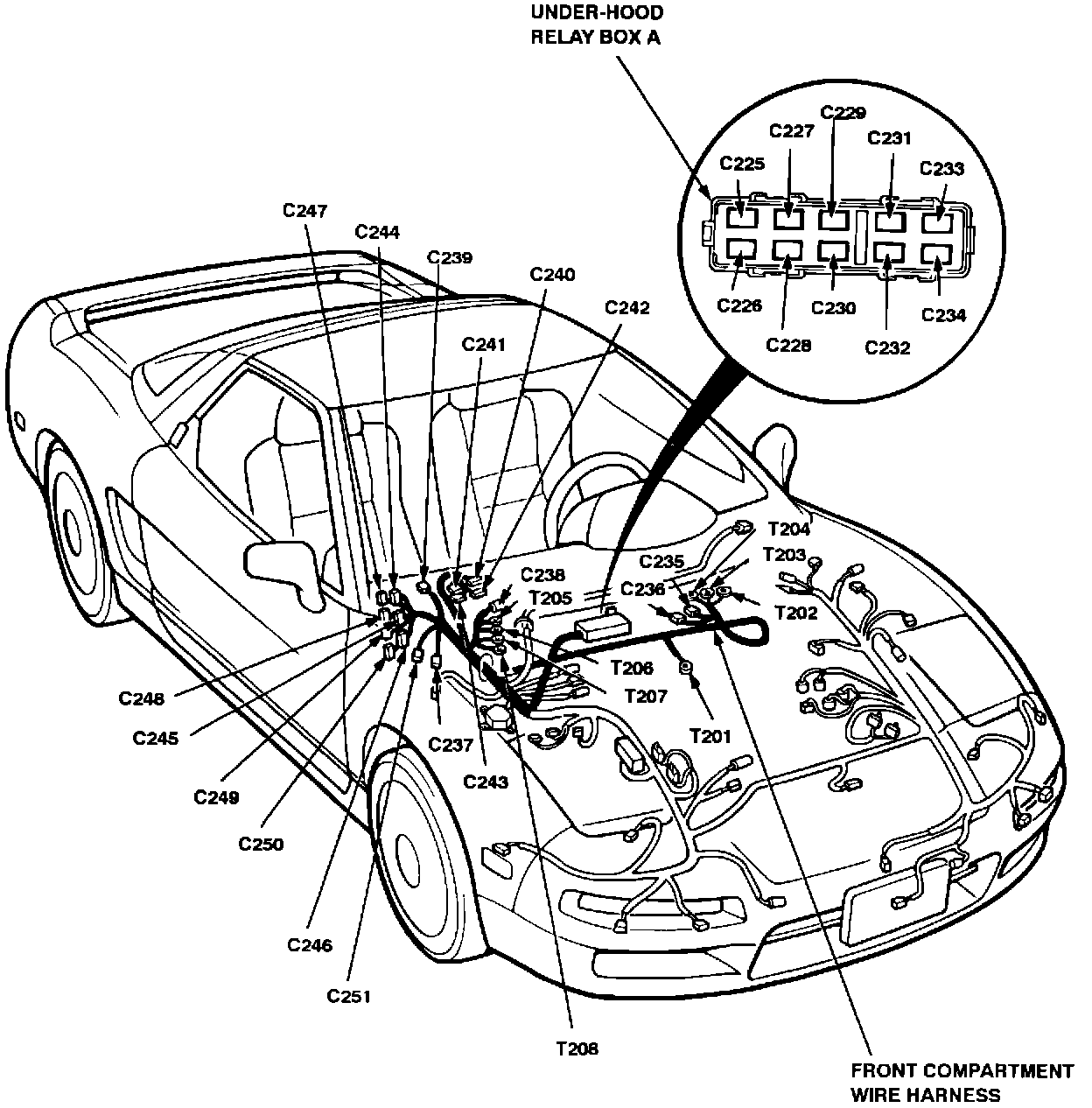

Connector Identification And Wire Harness Routing: Front Compartment:

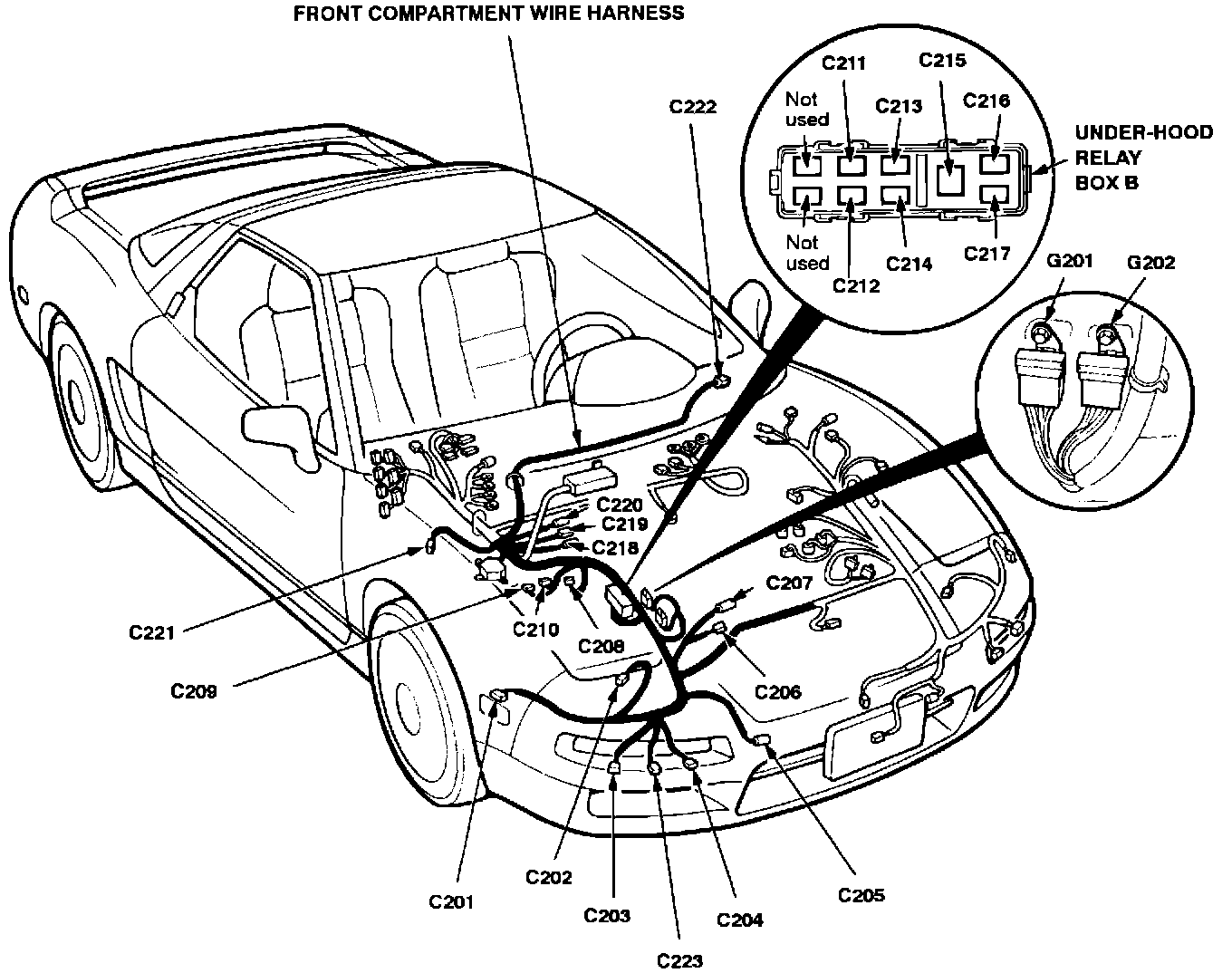

Connector Identification And Wire Harness Routing: Front Compartment:
