Clutch Switch: Testing and Inspection
1.
Remove instrument panel lower cover.
2.
Disconnect
clutch interlock switch electrical connector.

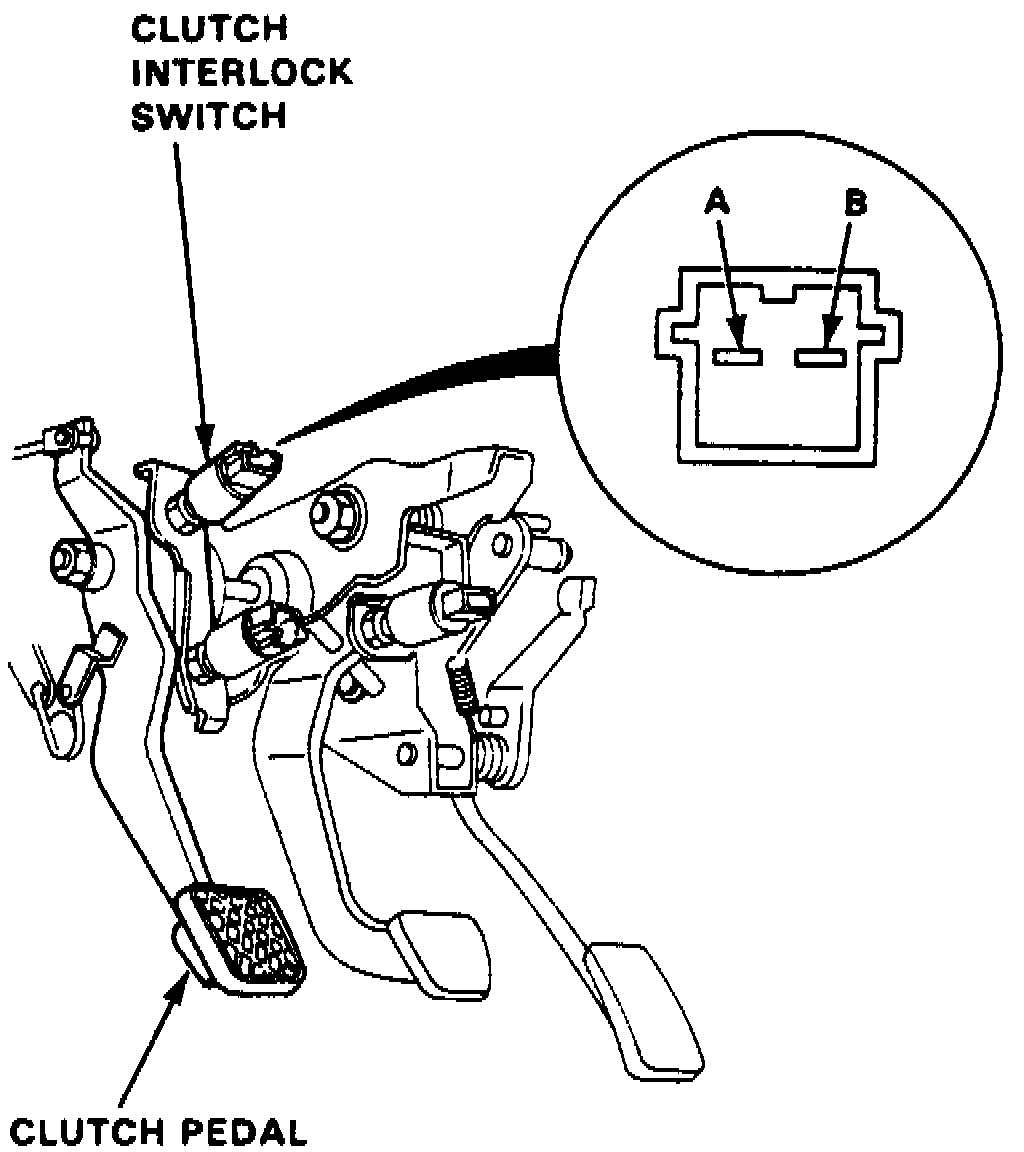

Fig. 12 Clutch Interlock Switch Test:
3.
Check for continuity as shown,
Fig. 12. 4.
Continuity should be indicated when pedal is depressed and no continuity when pedal is released.
5.
If continuity is not as indicated, replace switch.
