Engine Control Module

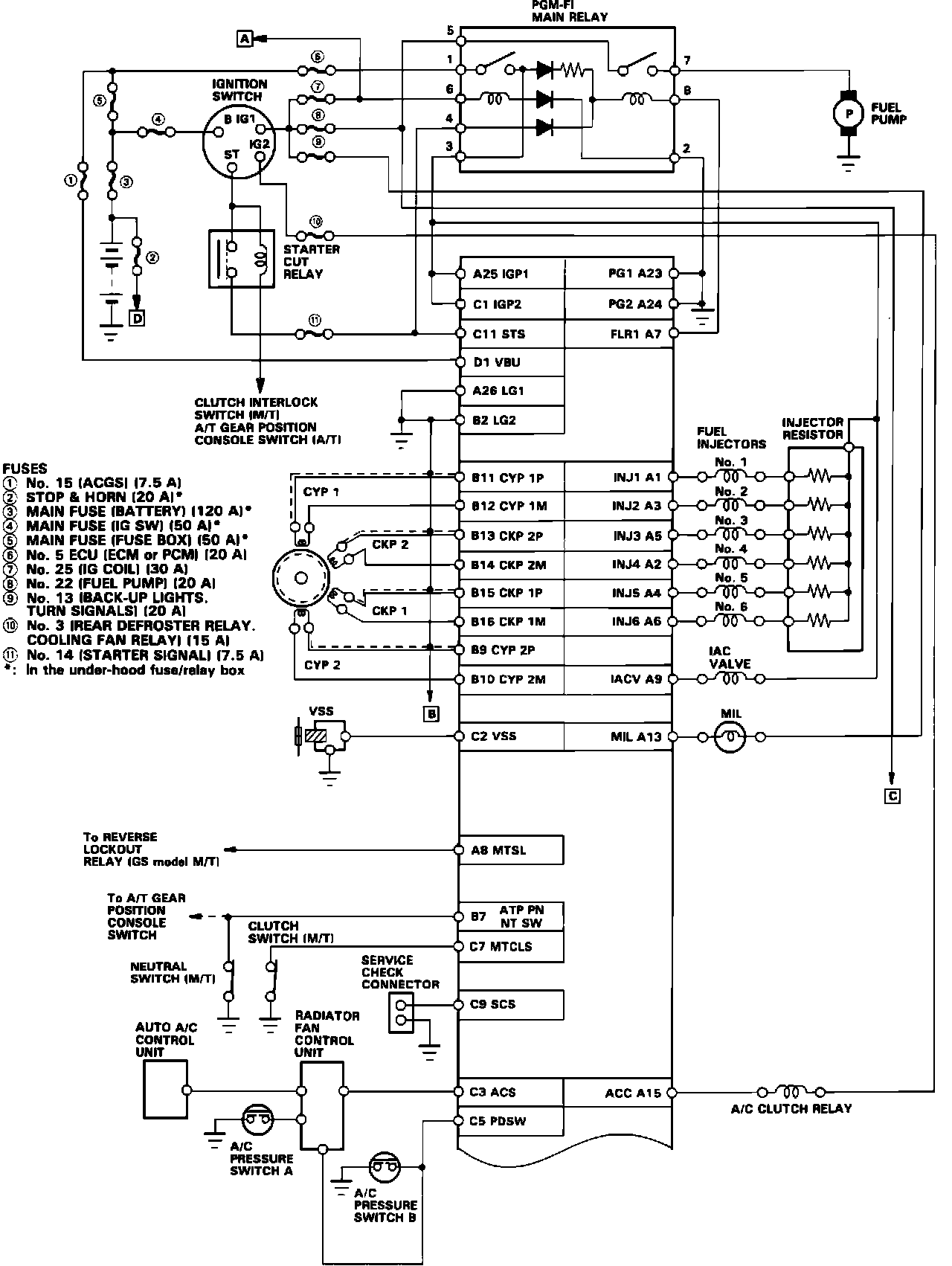

Engine Control Module (ECM) Pin Connections:



Engine Control Module (ECM) Pin Connections:
