Compressor Clutch: Service and Repair

Clutch Overhaul

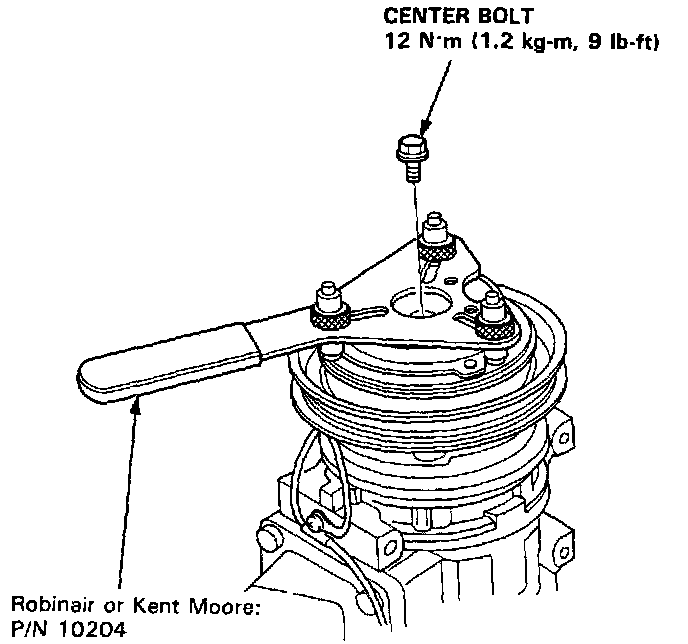

1. Remove the center bolt.

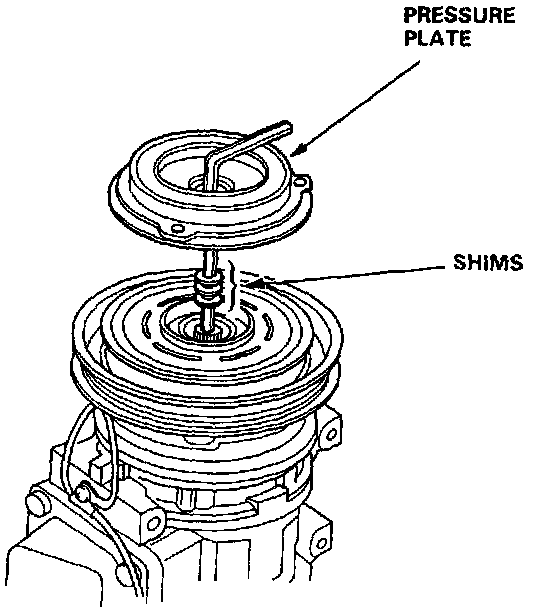

2. Remove the pressure plate and shim(s) taking care not to lose the shims.

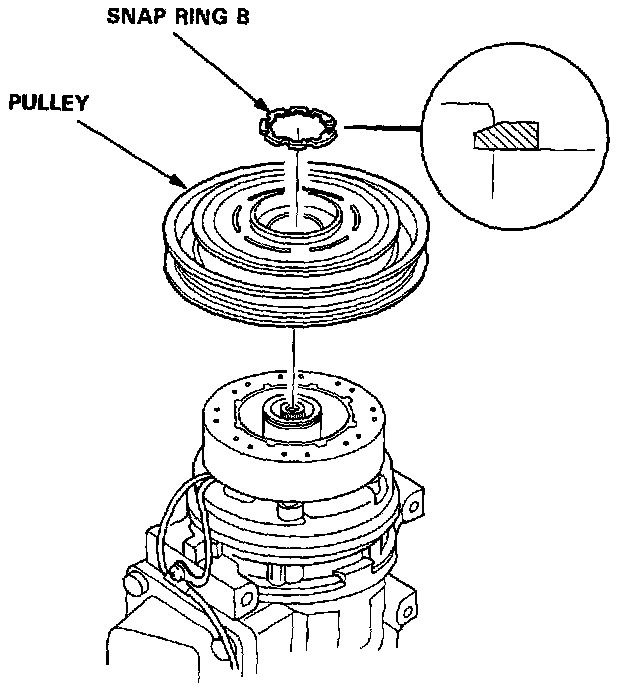

3. Use circlip pliers to remove snap ring B then remove the pulley.

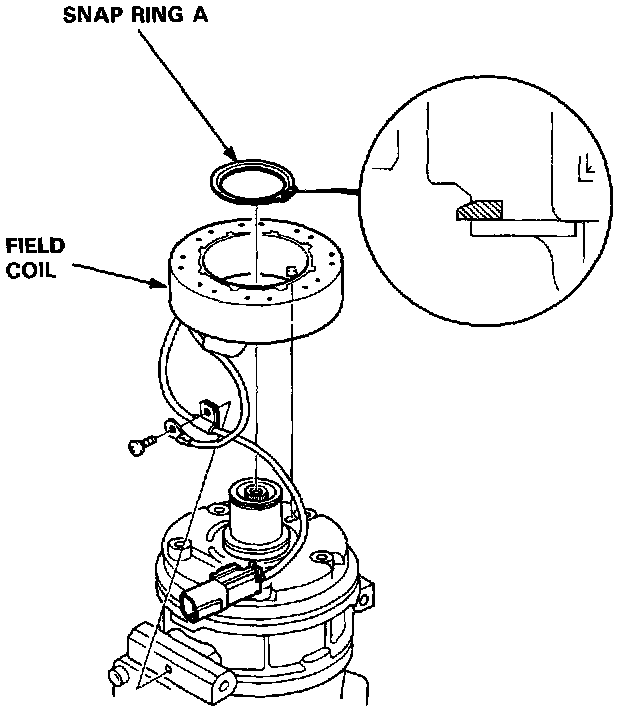

4. Remove snap ring A and the field coil.
5. Install parts in the reverse order of removal, and.
- Install the field coil with the wire side facing up (see above).
- Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
- Check the pulley bearings for excessive play.
- Make sure the circlip fits in its groove properly.
- Apply locking agent to the threads on the center bolt.
- Make sure that the pulley turns smoothly, after it's reassembled.
