Torque Specifications

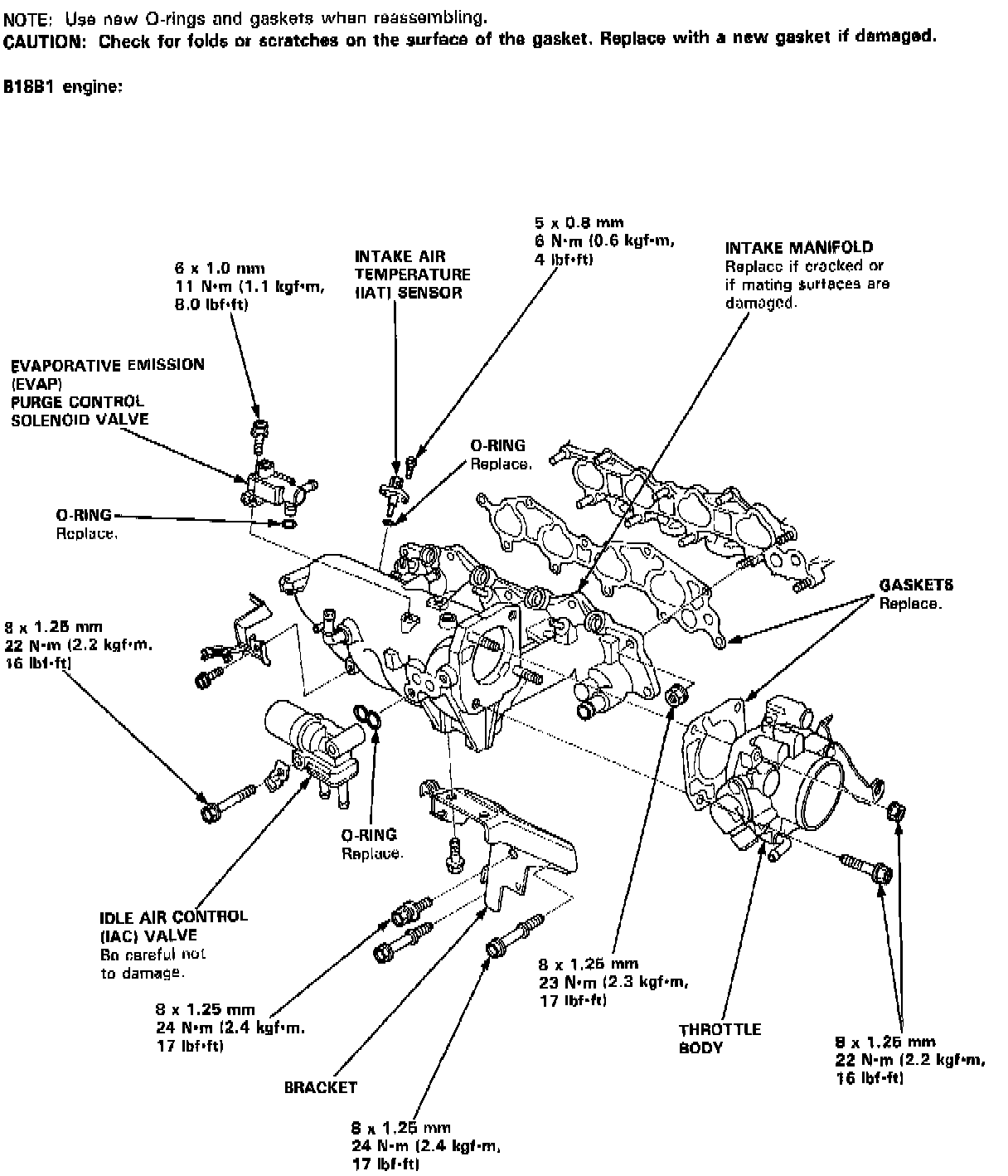

Intake:

Exhaust Manifold:

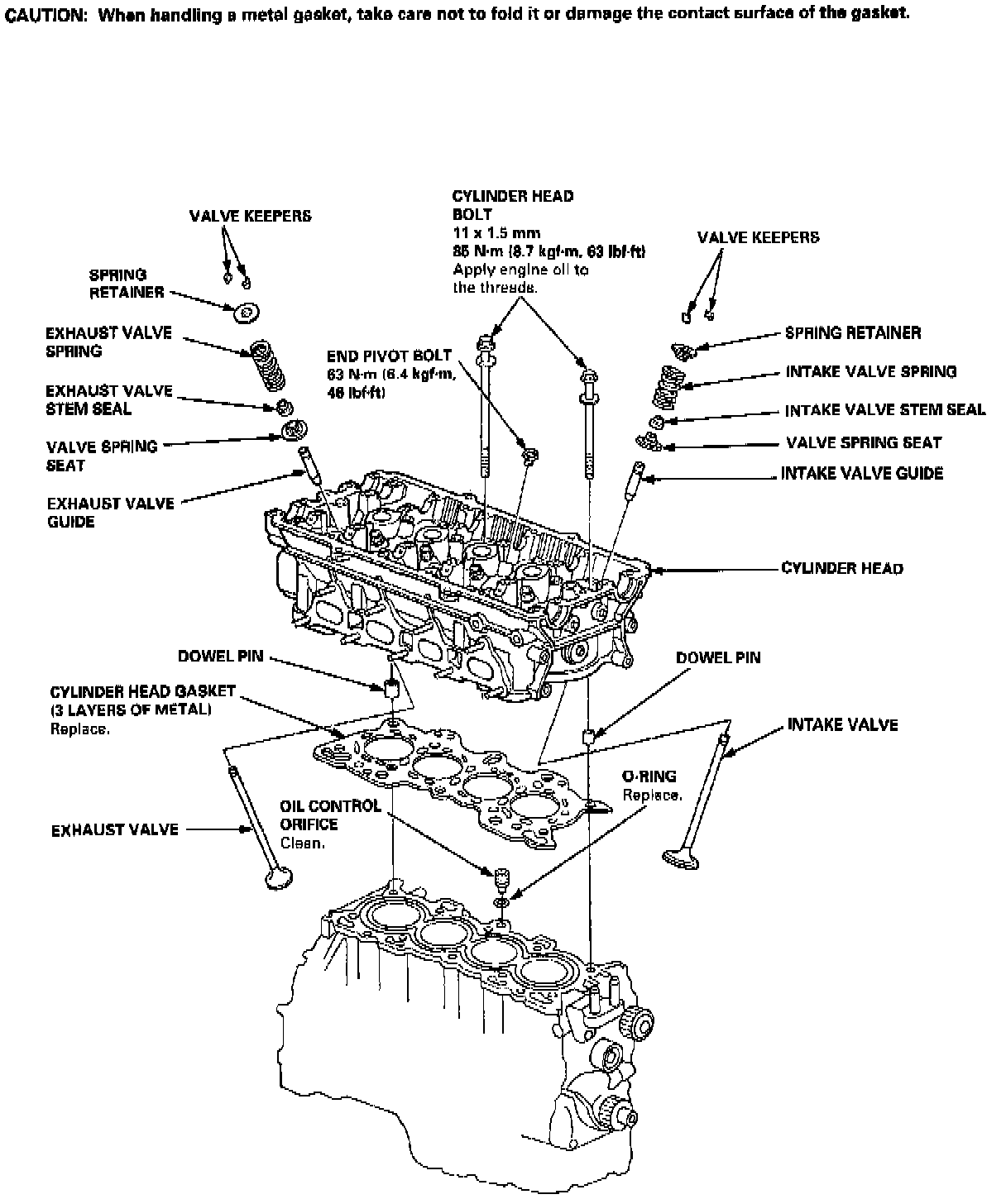

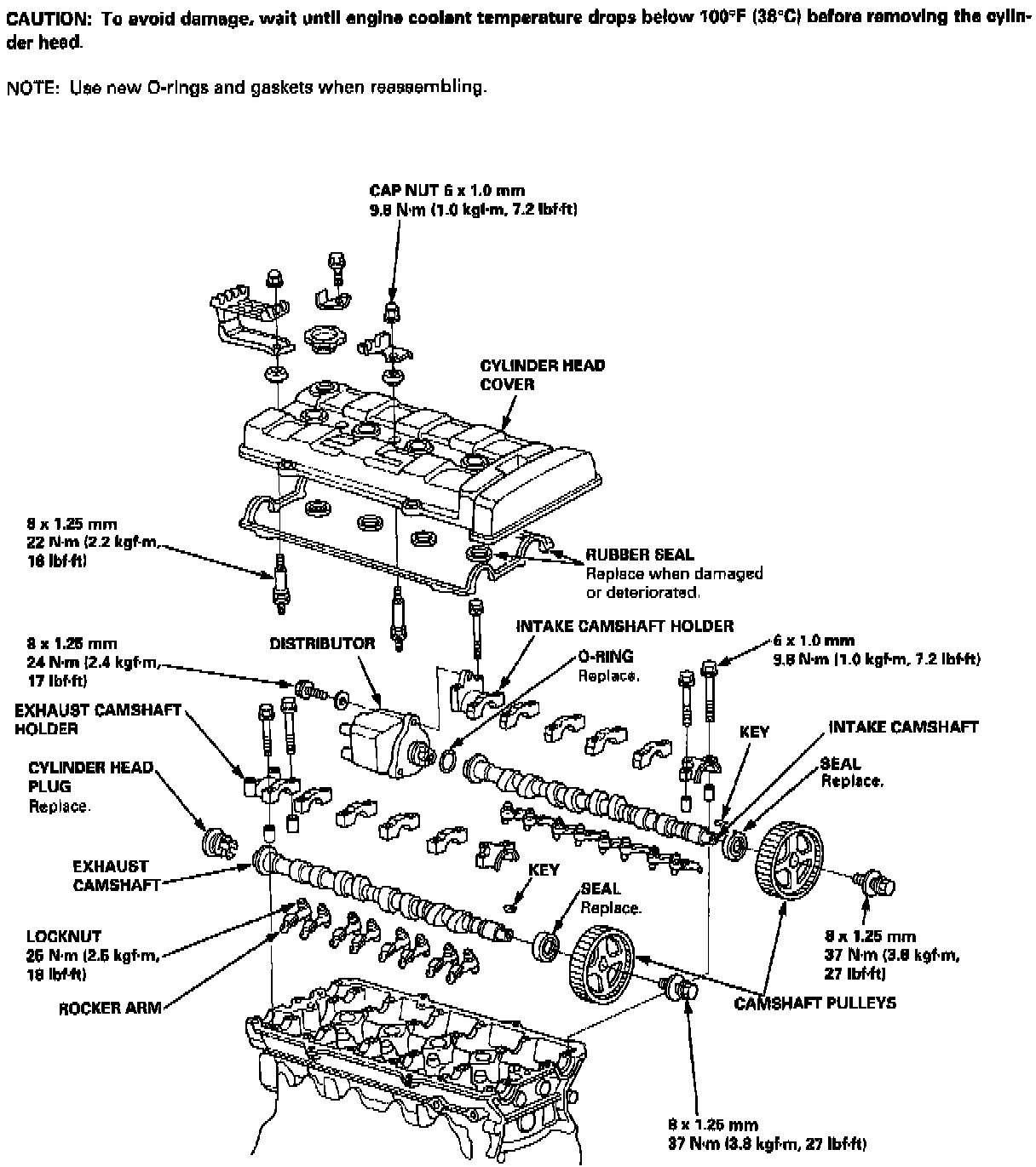

Upper Engine:

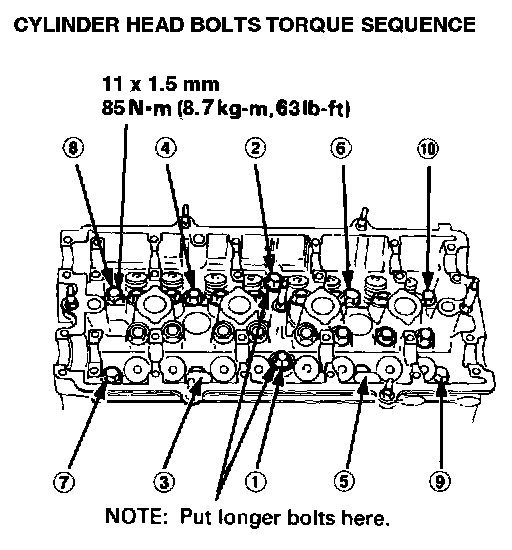

Head Bolt Torque Sequence:

Tighten head bolts, in sequence, in two steps:

1st step: Tighten to 30 N.m (3.0 kg-m, 22 lb.ft)
2nd step: Tighten to 85 N.m (8.7 kg-m, 63 lb.ft)
