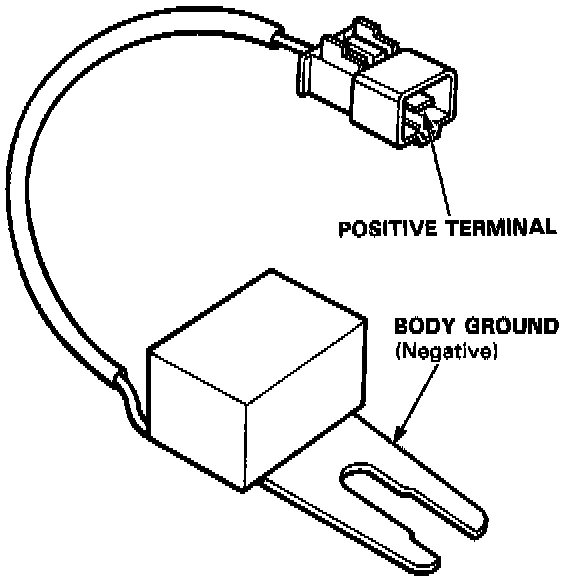

Condenser: Testing and Inspection
1.
Use a commercially available
condenser tester. Connect the tester probes and measure the condenser capacity.
Condenser capacity: 0.47 ± 0.09 microfarads NOTE: The
noise condenser is intended to reduce ignition noise. However,
condenser failure may cause the engine to stop running.
2.
If not within the specifications, replace the
noise condenser.
