Dash and SRS Fuse Boxes

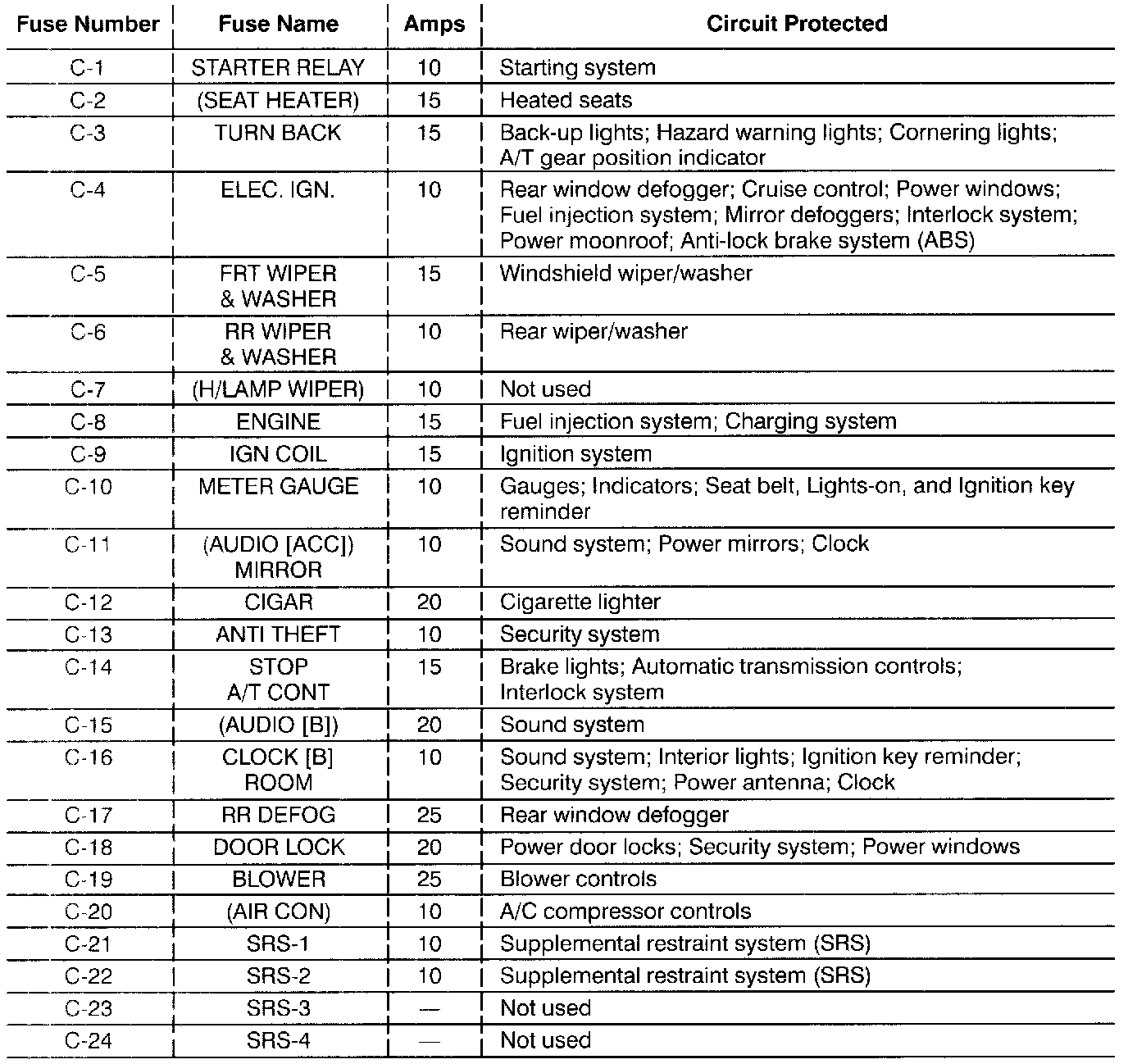

Fuse/Relay Information-Dash And SRS Fuse Boxes (Part 1 Of 2):

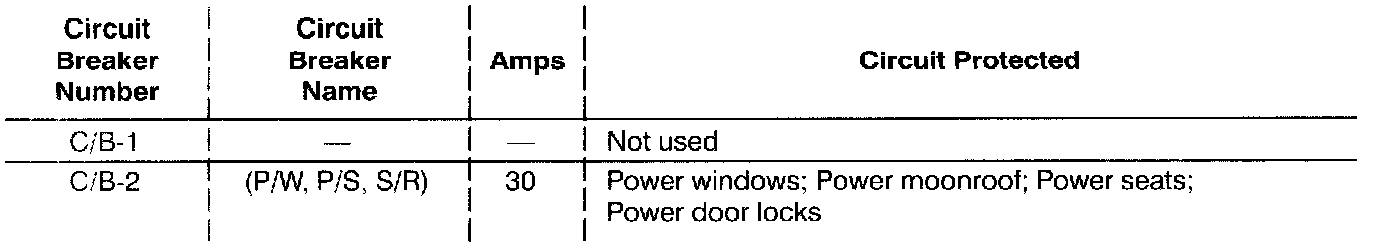

Fuse/Relay Information-Dash And SRS Fuse Boxes (Part 2a Of 2):

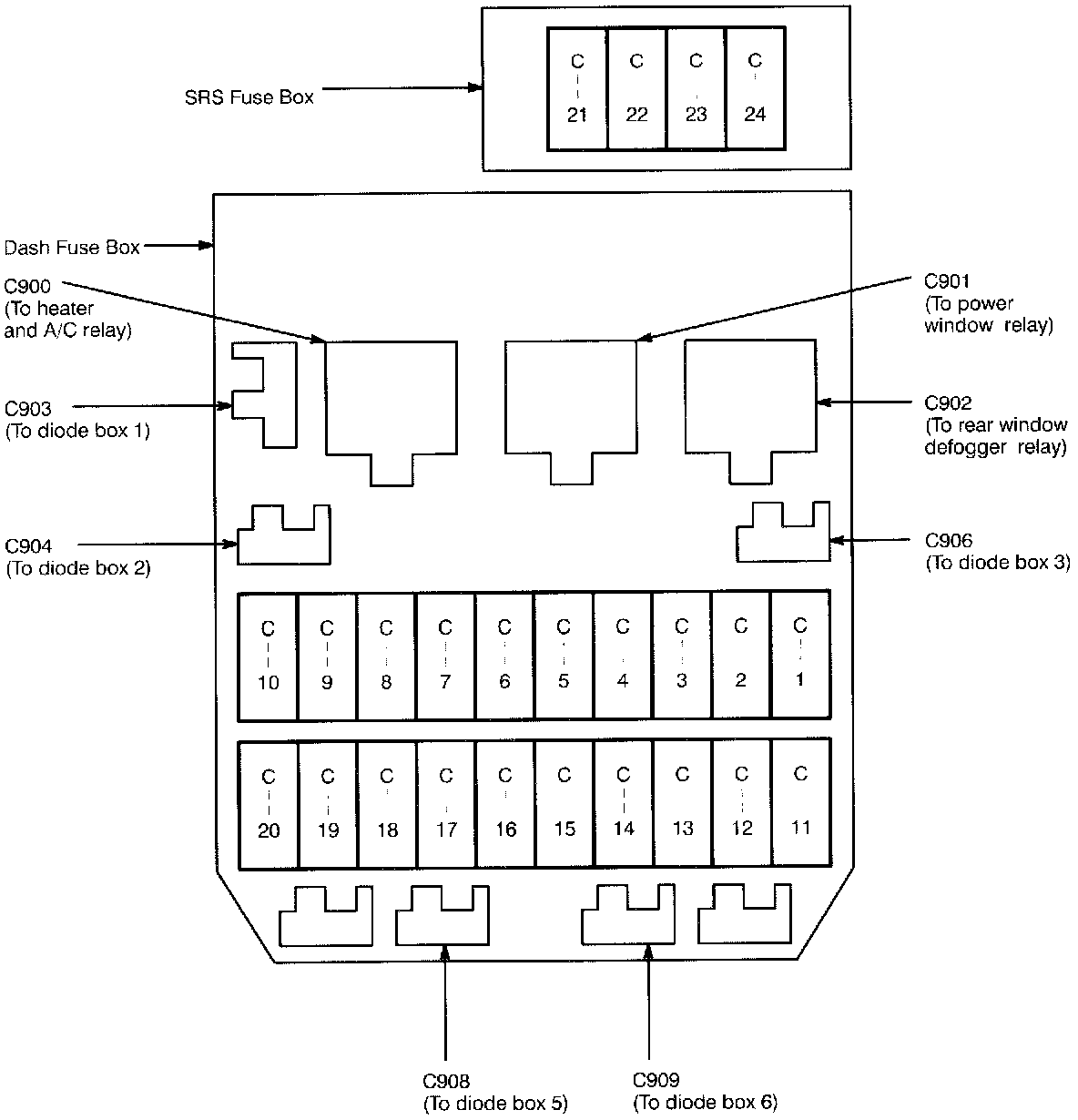

Fuse/Relay Information-Dash And SRS Fuse Boxes (Part 2b Of 2):
