Caster & Camber

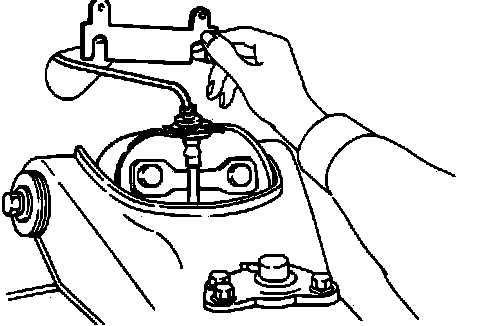

Fig. 1 Caster angle adjustment:

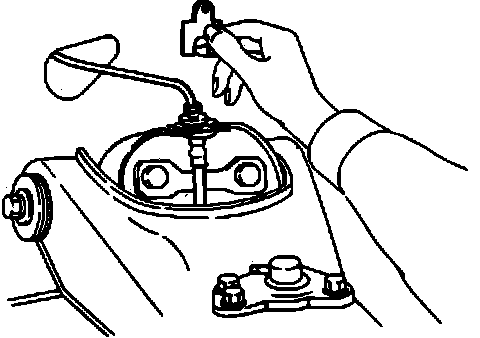

Fig. 2 Camber angle adjustment:
Caster angle can be adjusted with caster shims installed in position between the chassis frame and the fulcrum pins,
Fig. 1.Camber angle can be adjusted with the shims installed in position between the chassis frame and the fulcrum pins,
Fig. 2.
