Fuel Filter: Service and Repair




Fuel Filter:

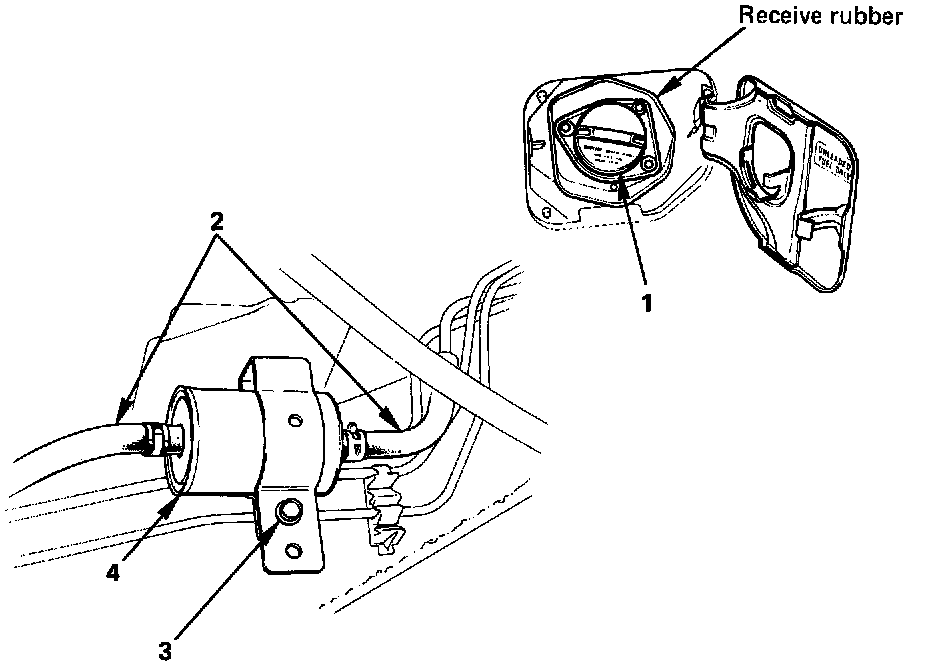

REMOVAL

Preparation:
^ Disconnect battery ground cable.
1. Fuel filler cap
2. Fuel hose
^ Disconnect fuel hoses from fuel filter on both engine side and fuel tank side.
3. Fuel filter fixing bolt
^ Remove the bolt on fuel filter holder.
4. Fuel filter

INSTALLATION
1. Fuel filter

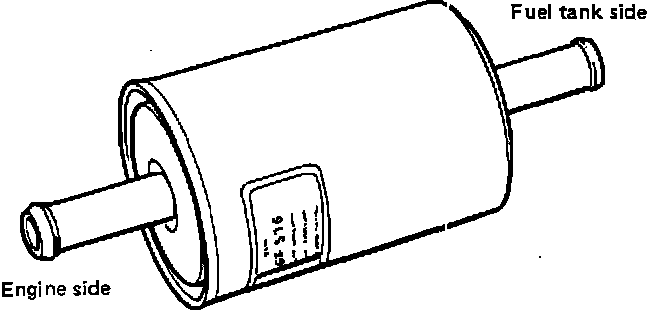

^ Install the filter in the proper direction.
2. Fuel filter holder fixing bolt.
3. Fuel hose
^ Connect hoses on engine side and fuel tank side.
4. Fuel filler cap
 Connect the battery ground cable.

INSPECTION
After installation, start engine and check for fuel leakage.
